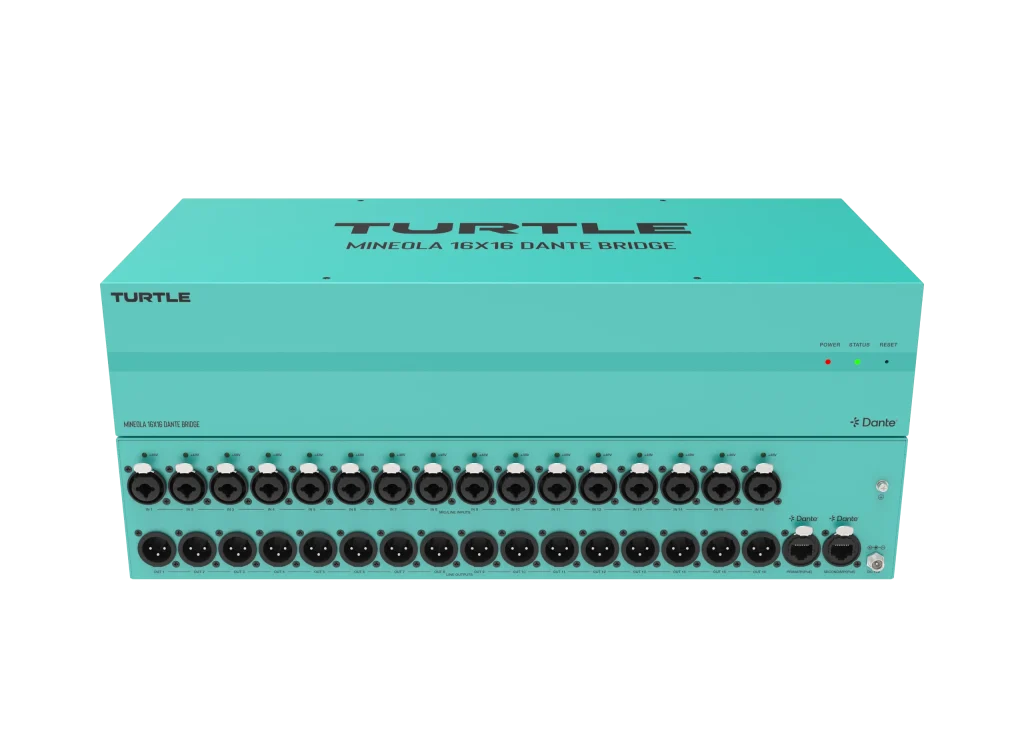

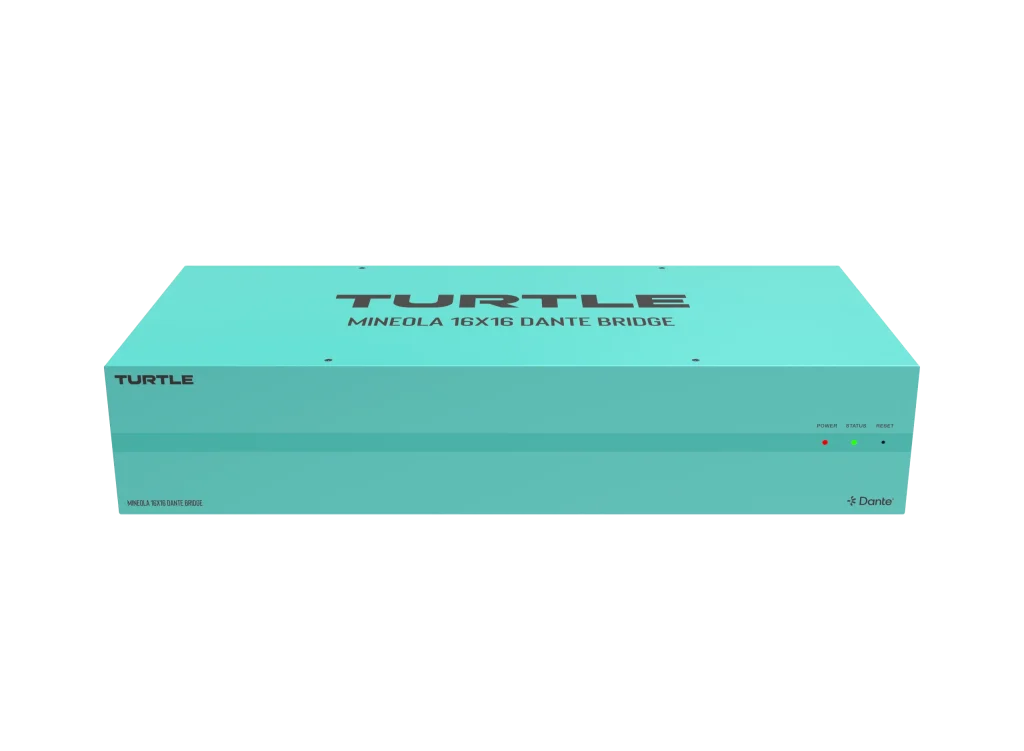

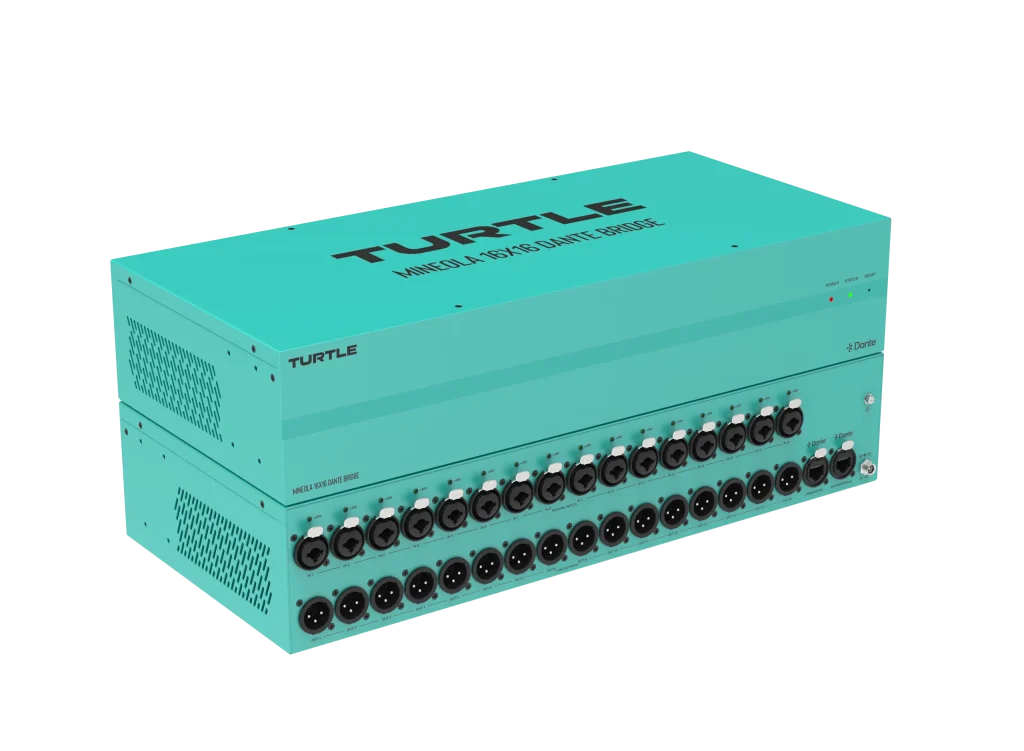

Mineola 16×16 Dante Audio Bridge

Overview

The Mineola 16×16 is the ultimate solution for demanding setups requiring sixteen inputs and sixteen outputs. Designed to bridge digital Dante and analog XLR audio seamlessly, it provides exceptional performance for large-scale productions. Ideal for live events, broadcast studios, or permanent installations, the Mineola 16×16 delivers pristine audio and unparalleled flexibility for professional environments.

Technical

Input
Output
Control
Network Bandwidth
Audio Latency
Line-Up Level Selection
Input Sensitivity
Output Gain Options
Audio Processing
Sample Rate
Sample Rate Conversion (SRC)
Signal Latency
Power Consumption

ESD Protection

16 channels balanced/unbalanced analog audio with 48V Phantom power
16 channels Dante® digital audio
Dante® Controller, WebUI
100M
Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)
Adjustable Global 0dBFS: -35dBV, -18dBV, 0dBV, +4dBu, +14dBu, +24dBu
0dBV / +4dBu / +14dBu / +24dBu / -18dBV / -35dBV
0dBV / +4dBu / +14dBu / +20dBu / -18dBV
Input Gain, 8-Band Parametric EQ, Delay Control
48 kHz / 96 kHz
48 kHz

18 ms
3.96W

IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connections

INPUT

OUTPUT

NETWORK

16x LINE IN/MIC IN [XRL/TRS combo]

16x LINE OUT/MIC OUT [XRL/TRS combo]

1x DANTE PRIMARY [RJ45 LAN, PoE]
1x DANTE SECONDARY [RJ45 LAN, PoE]

Mechanical

Housing
Color
Dimensions

Power Supply

Operating Temperature
Relative Humidity

Metal enclosure
Turtle Aqua
1U 19″ rack mount

PoE: PoE IEEE802.3af Class 0
12V DC

32 – 104° F / -20 – 60° C
20% – 90% RH (no condensing)
