USB-C 4K60 & USB 2.0 Extender Kit Specs

Overview

The Turtle AV USB Extender Kit pushes the boundaries of connectivity, delivering high-speed USB and uncompressed 4K60 video in a single, compact solution. Whether it’s a full-scale AV install or smaller BYOD meeting spaces, this kit has you covered:

• 4K60 (4:4:4 8bit) video and USB 2.0 signals up to 130 feet / 40 metres
• 4K30 (4:4:4 8bit) video and USB 2.0 signals up to 230 feet / 70 metres
• High Dynamic Range pass through
• 100W USB-C PD port for charging
• Power over Cable (PoC) for simplified installs
• API control for advanced system integration
• Plug-and-play compatibility with universal device support
• Subframe latency over a single CAT cable
• Audio pass through

Technical Specs

HDMI
HDMI 2.0b

HDCP
HDCP 2.3

USB
USB 2.0

Video Bandwidth
18Gbps

Video Resolution
Up to 4K@60Hz (4:4:4 8bit)

Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth
8/10/12bit

HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG

Audio Formats
USB-C/HDMI passthrough:
LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD
Master Audio and DTS:X

Transmission Distance
4K60Hz (4:4:4 8bit) signal up to 130ft/40m
4K30Hz (4:4:4 8bit) signal up to 230ft/70m with CAT6A/7 cable
USB 2.0 pass through up to 230ft/70m, connecting to 4 USB devices to the receiver

ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

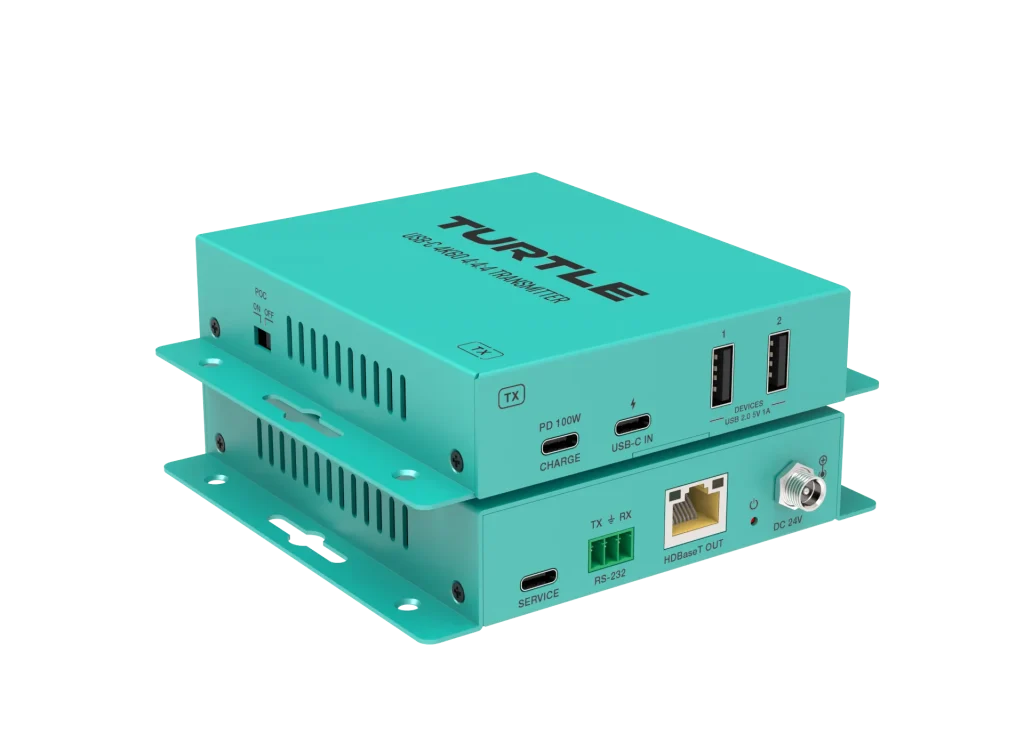

Transmitter

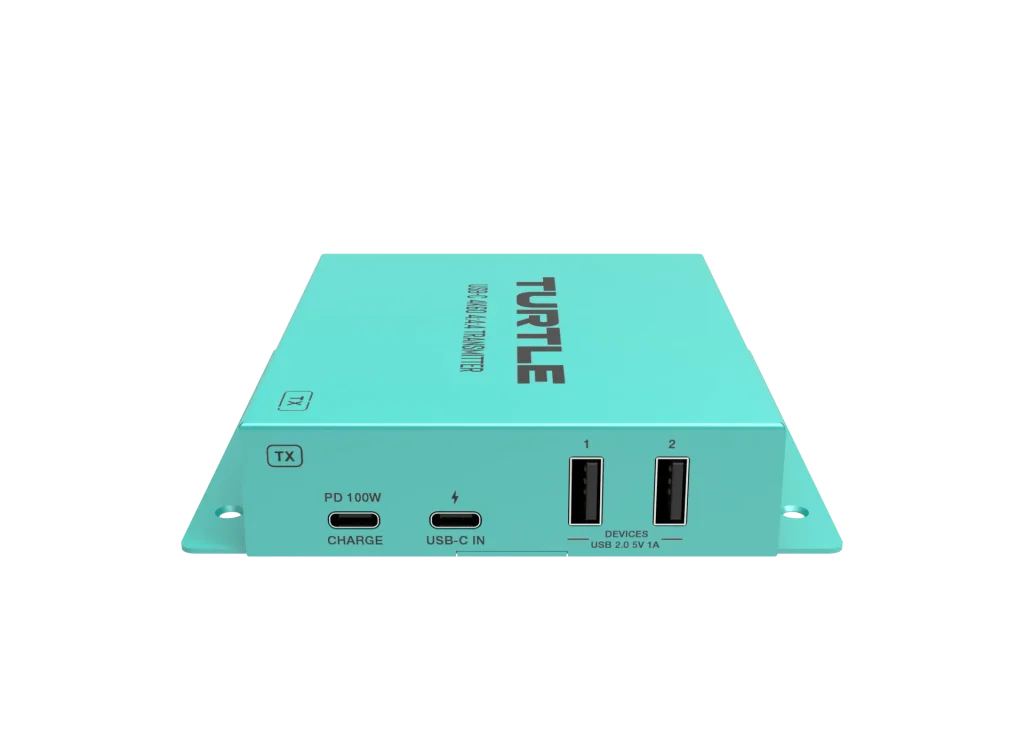

Front Panel
1x CHARGE [USB Type C, 24-pin female]
1x USB-C IN [USB Type C, 24-pin female]
2x USB 2.0 DEVICES [USB Type A, 4-pin female]

Rear Panel
1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port]
1x RS-232 [3-pin phoenix with 3.5mm pitch]
1x HDBaseT OUT [RJ45 connector, 24V PoC]
1x Power LED [Red LED, Power indicator]
1x DC 24V [24V/2.7A, 19mm locking connector]

Side Panel
1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/OFF selection]

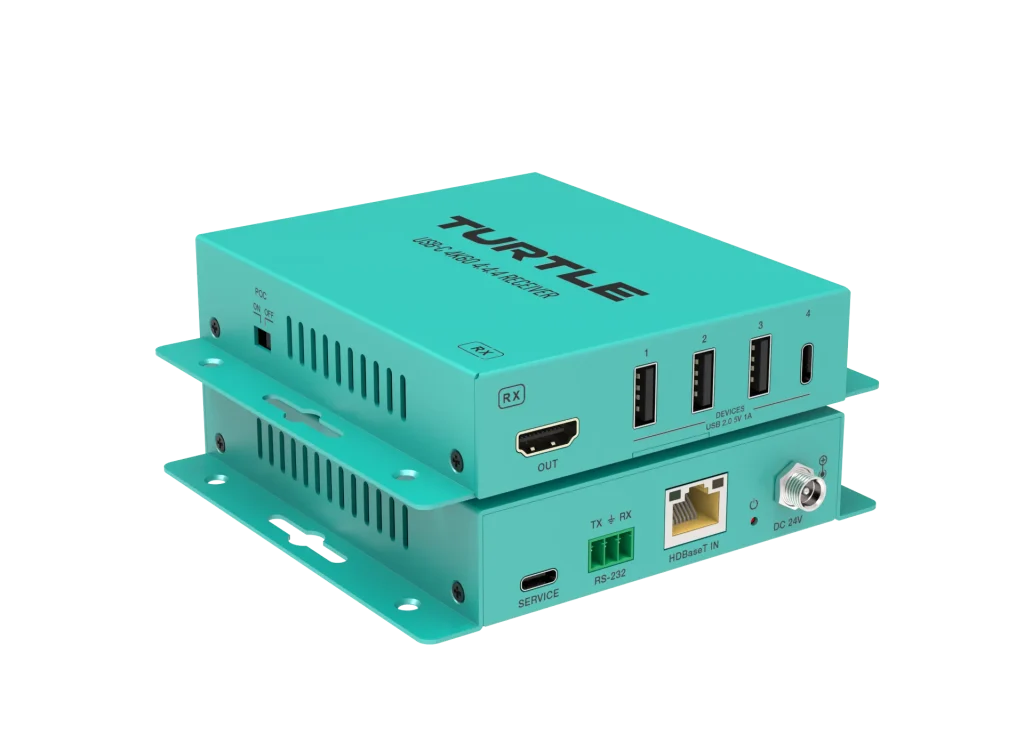

Receiver

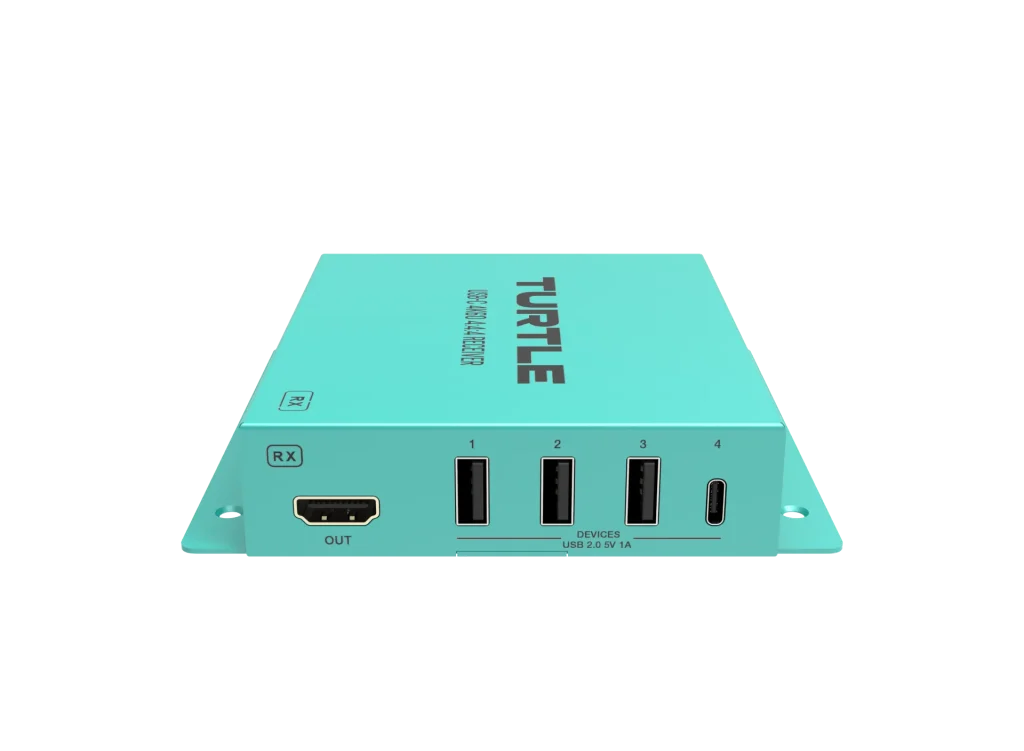

Front Panel
1x HDMI OUT [HDMI Type A, 19-pin female]
1x USB 2.0 DEVICES [USB Type C, 12-pin female]
3x USB 2.0 DEVICES [USB Type A, 4-pin female]

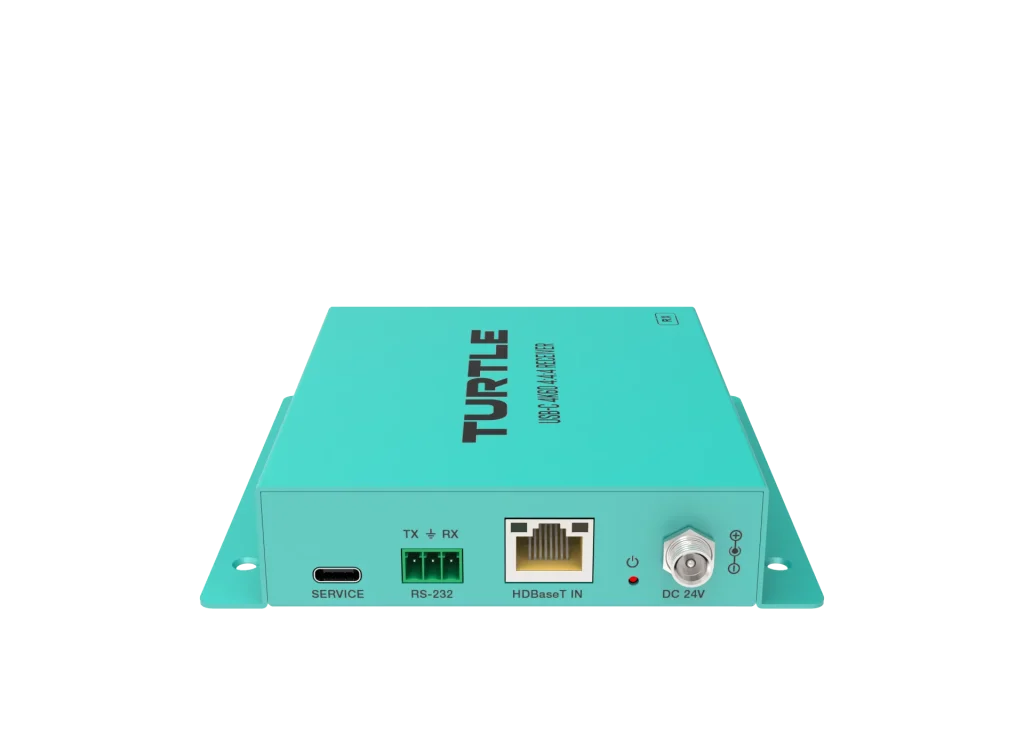

Rear Panel
1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port]
1x RS-232 [3-pin phoenix with 3.5mm pitch]
1x HDBaseT IN [RJ45 connector, 24V PoC]
1x Power LED [Red LED, Power indicator]
1x DC 24V [24V/2.7A, 19mm locking connector]

Side Panel
1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/OFF selection]

Mechanical

Housing
Metal

Color
Turtle Aqua

Dimensions
Transmitter/Receiver: 120mm [W] x 113mm [D] x 25.5mm [H]

Weight
Transmitter: 353g, Receiver: 352g

Power Supply Input
AC 100 – 240V 50/60Hz

Output
DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)

Power Consumption
TX/RX with full USB devices: 51.36W
TX/RX without USB devices: 10.08W

Operating Temperature
32°F – 104°F / 0°C – 40°C

Storage Temperature
-4°F – 140°F / -20°C – 60°C

Operating Humidity
20% – 80% relative humidity, non-condensing

Storage Humidity
10% – 90% relative humidity, non-condensing

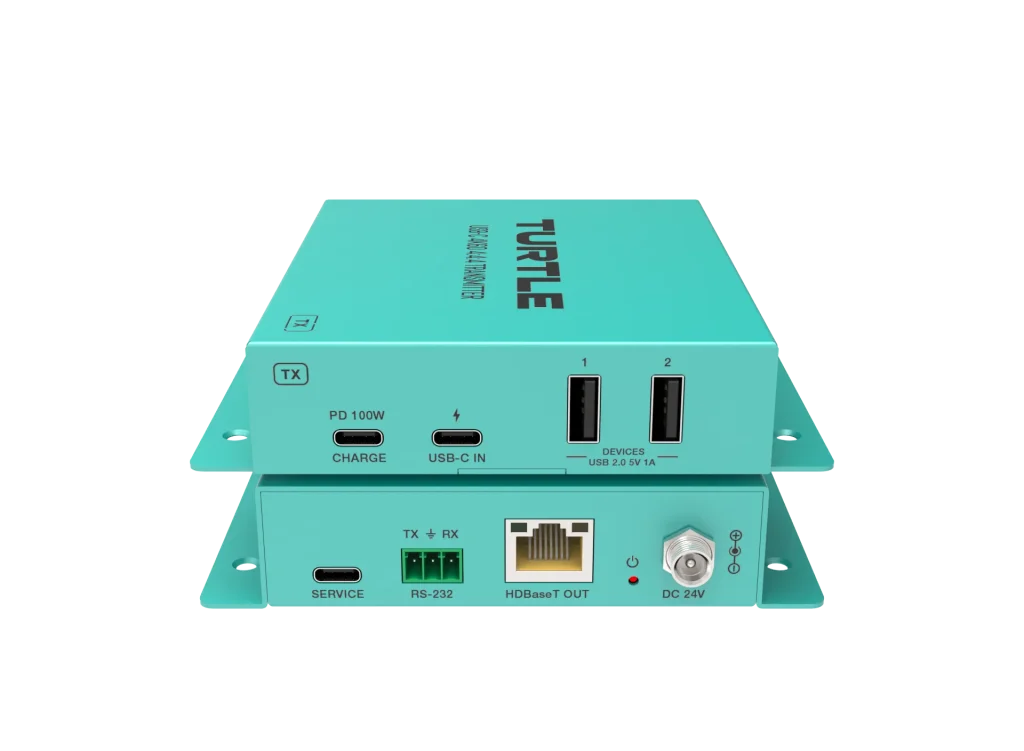

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

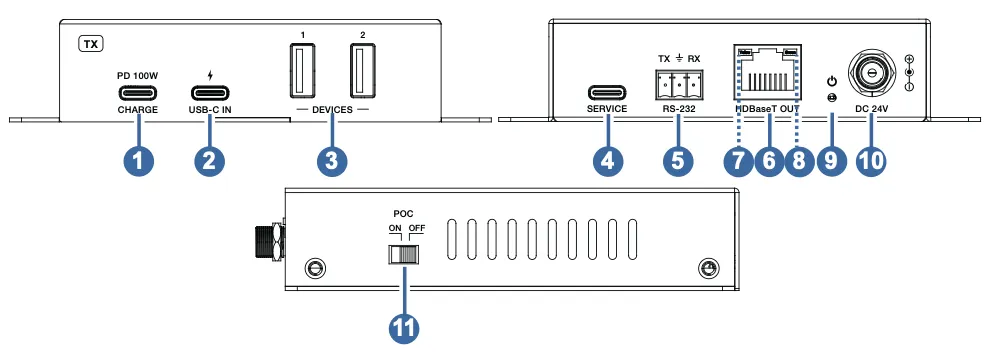

CHARGE port
USB-C IN port
USB 2.0 Devices
Service port
RS-232
HDBaseT OUT port
Signal LED (Yellow)
Link LED (Green)
Power LED (Red)
DC 24V
PoC (Power over Cable) switch

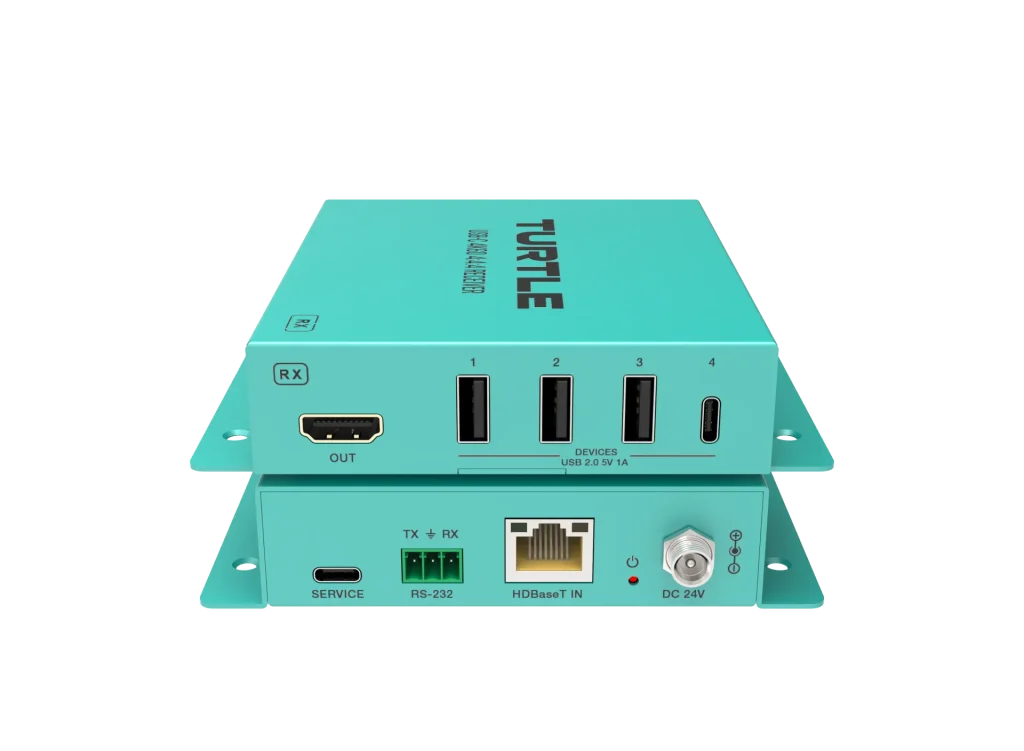

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

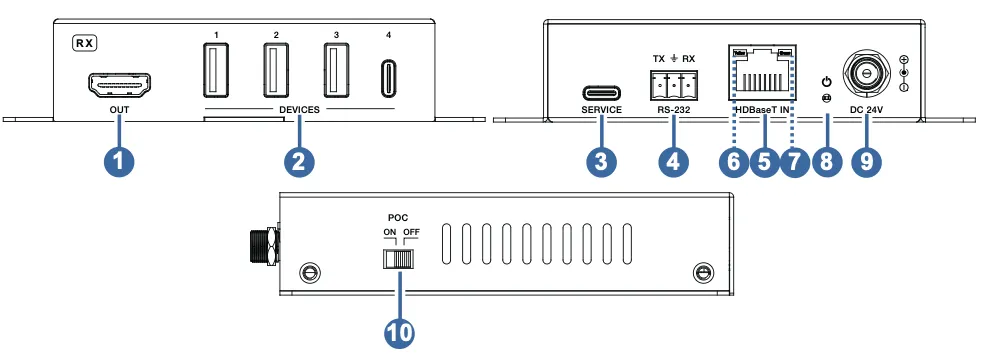

HDMI Output
USB 2.0 Devices
Service port
RS-232
HDBaseT IN port
Signal LED (Yellow)
Link LED (Green)
Power LED (Red)
DC 24V
PoC (Power over Cable) switch
