Technical

USB Protocol	USB 3.2 Gen 1
Transmission Rate	Up to 2.5Gbps
HDCP Compliance	HDCP 2.3 and HDCP 1.x
HDMI™ Compliance	HDMI™ 2.0b
HDMI™ Video Bandwidth	18Gbps
HDMI™ Video Resolution (Input & Output)	640x480p60Hz 800x600p60Hz 1024x768p60Hz 1280x1024p60Hz 1360x768p60Hz 1440x900p60Hz 1440x1050p60Hz 1600x1200p60Hz 720x480i59.94Hz (480i59) 720x480p59.94Hz (480p59) 720x576i50Hz (576i50) 720x576p50Hz (576p50) 1280x720p50Hz (720p50) 1280x720p59.94Hz (720p59) 1280x720p60Hz (720p60) 1920x1080i50Hz (1080i50) 1920x1080i59.94Hz (1080i59) 1920x1080i60Hz (1080i60) 1920x1080p23.98Hz (1080p23) 1920x1080p24Hz (1080p24) 1920x1080p25Hz (1080p25) 1920x1080p29.97Hz (1080p29) 1920x1080p30Hz (1080p30) 1920x1080p50Hz (1080p50) 1920x1080p59.94Hz (1080p59) 1920x1080p60Hz (1080p60) 2560x1080p60Hz 3440x1440p60Hz 3840x2160p23.98Hz (2160p23) 3840x2160p24Hz (2160p24) 3840x2160p25Hz (2160p25) 3840x2160p29.97Hz (2160p29) 3840x2160p30Hz (2160p30) 3840x2160p50Hz (2160p50) 3840x2160p59.94Hz (2160p59) 3840x2160p60Hz (2160p60) 4096x2160p23.98Hz 4096x2160p24Hz 4096x2160p25Hz 4096x2160p29.97Hz 4096x2160p30Hz 4096x2160p50Hz 4096x2160p59.94Hz 4096x2160p60Hz 5120x1440p50Hz 5120x1440p60Hz 5120x2160p50Hz 5120x2160p60Hz
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Audio Format	HDMI™ OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio Analog audio de-embedding: LPCM 2CH, sample rate 32kHz to 192kHz
Transmission Distance	Up to 40m / 130ft for 5K@30Hz via CAT6a cable Up to 35m / 115ft for 5K@60Hz via CAT6a cable 1.5m / 4.9ft via USB 3.2 Gen 1 5Gbps passive cable 3m / 9.8ft via HDMI™ passive cable
Audio Parameters	Output level (max): 2.2dBu (1Vrms) Frequency response: 20Hz to 20kHz (+/-0.5dB) Dynamic range: >90dB @ 0dBu, 1kHz, A-weighted Audio S/N ratio: >90dB @ 0dBu, 1kHz, A-weighted Audio THD+N: <0.007% @ OUT 2.2dBu, 1kHz
ESD Protection	IEC 61000-4-2: +/-8kV air-gap discharge, +/-4kV contact discharge

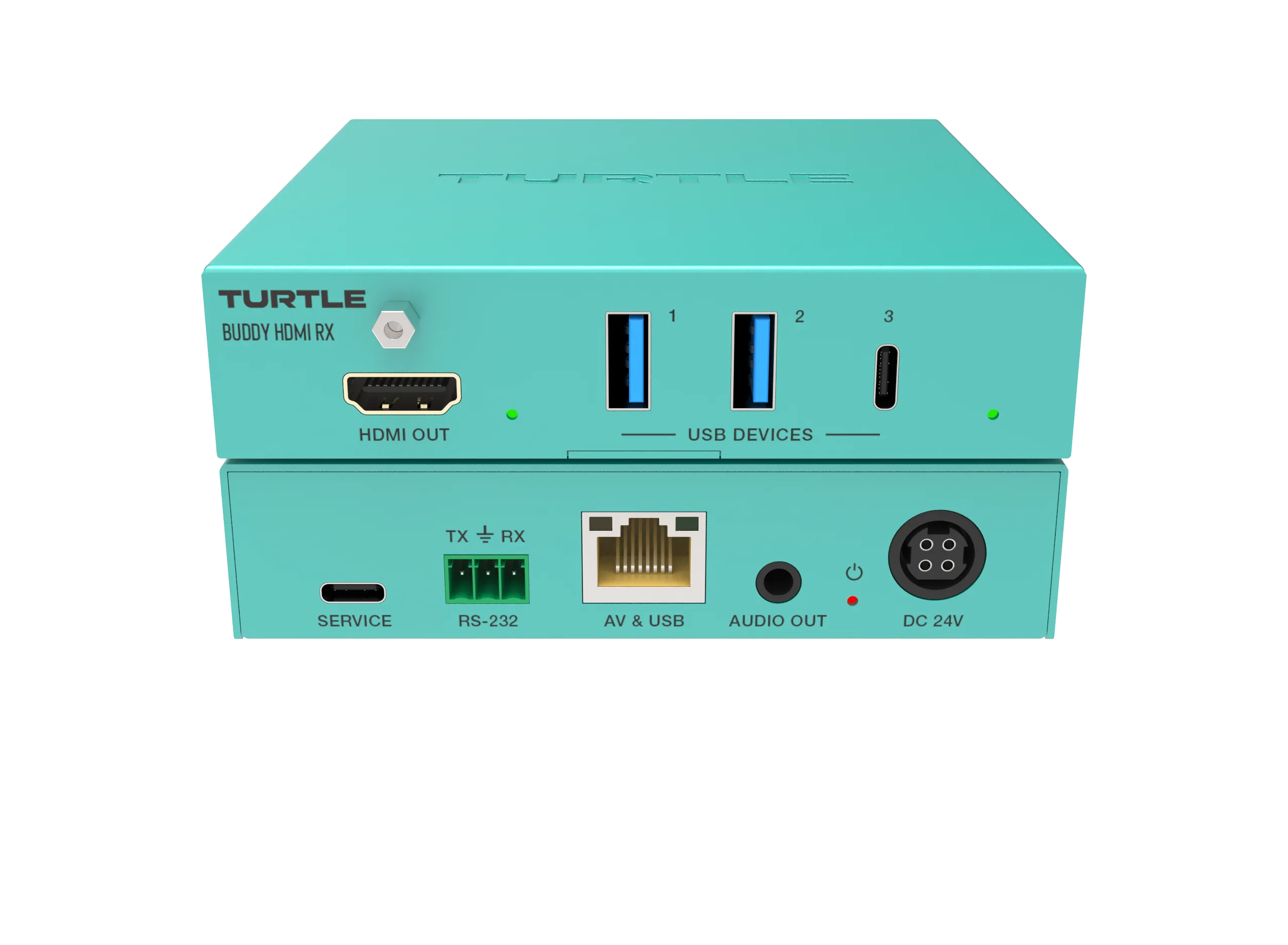

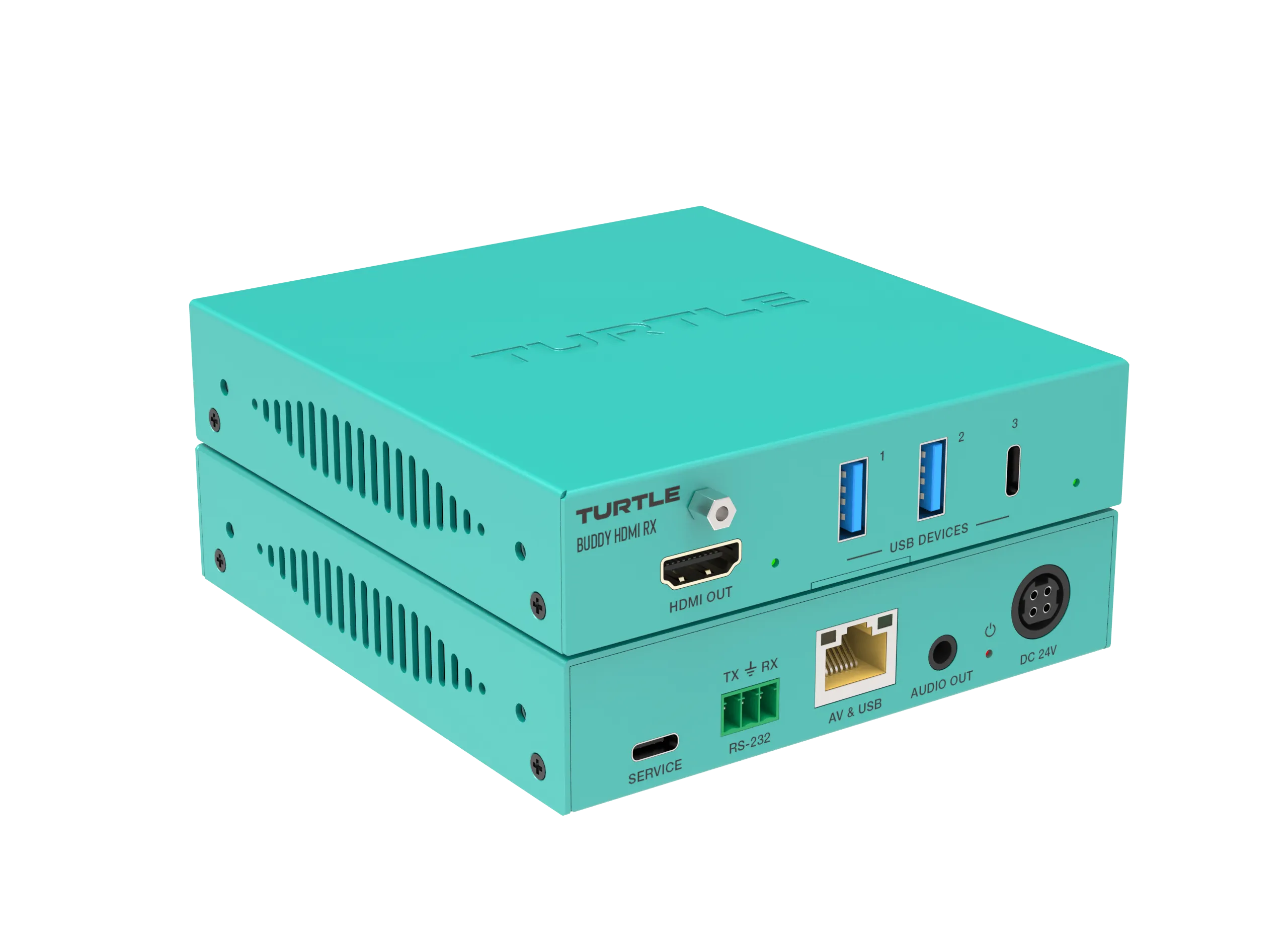

Connections

Input	1x AV-USB3 IN, RJ45 connector, 24V PoC

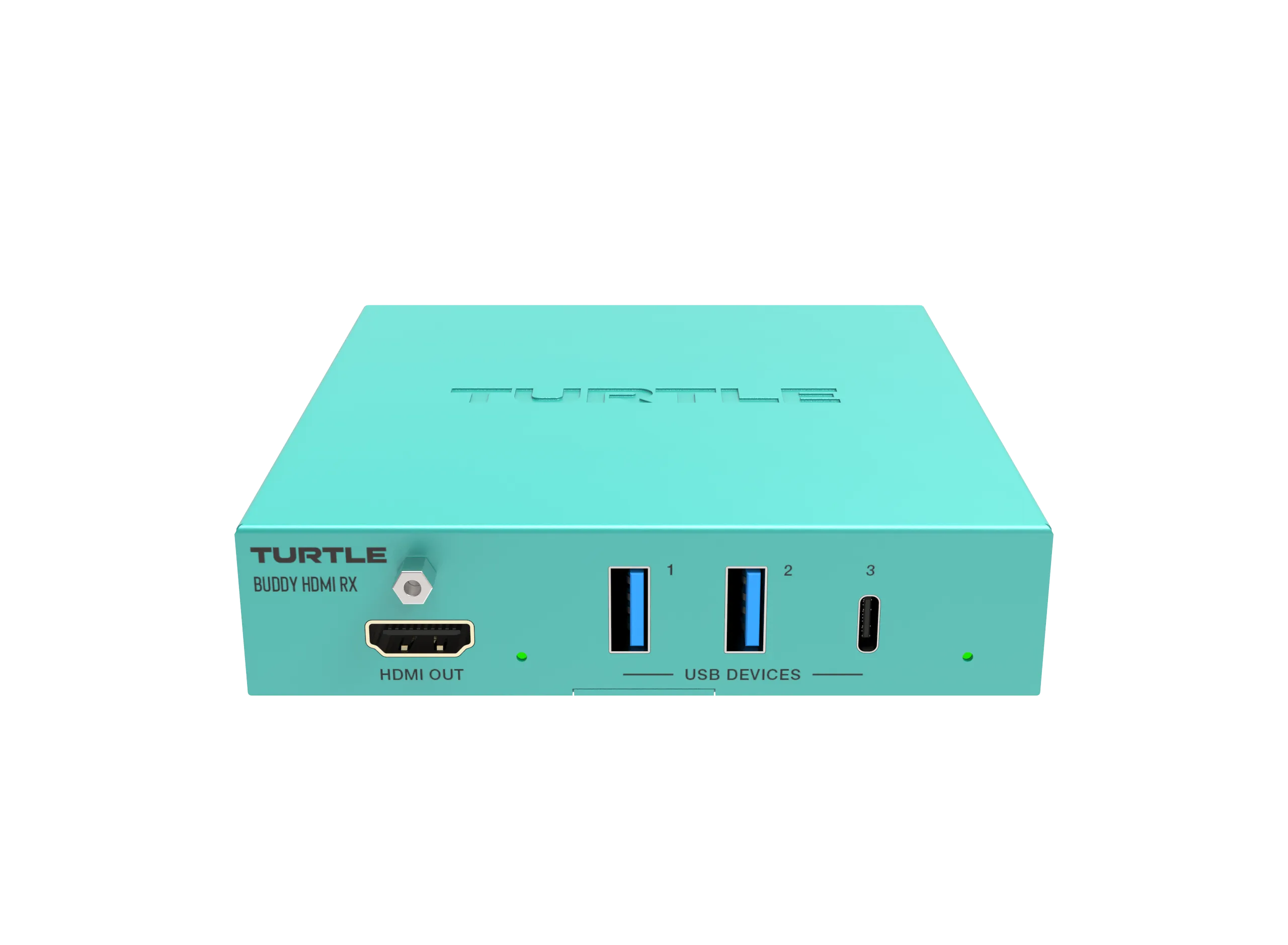

Output	2x USB-A downstream, 9-pin female 1x USB-C downstream, 24-pin female 1x OUT, HDMI™ type A, 19-pin female 1x AUDIO OUT, 3.5mm audio jack

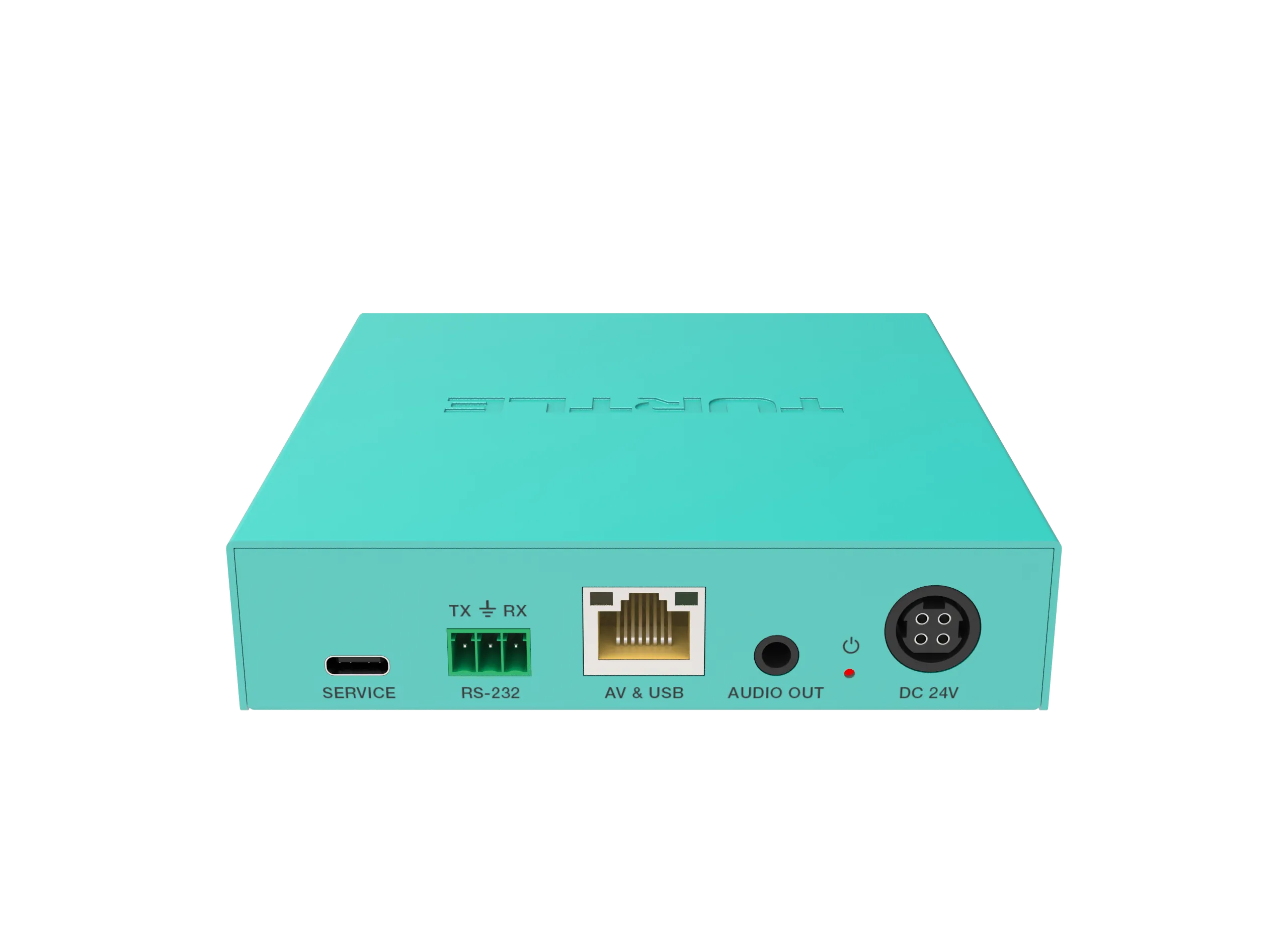

Control	1x RS-232, 3-pin 3.5mm phoenix connector 1x SERVICE, USB-C firmware update port

Mechanical

Housing	Metal enclosure
Color	Turtle Aqua
Dimensions	Receiver: 118mm (W) x 111mm (D) x 25.5mm (H)
Weight	Receiver: 383g
Power Supply	Input: AC 100~240V 50/60Hz; output: DC 24V/2A (US/EU standards, CE/FCC/UL certified)
Power Consumption	Receiver: 25.4W max
Operating Temperature	0°C to 40°C / 32°F to 104°F
Storage Temperature	-20°C to 60°C / -4°F to 140°F
Operating Humidity	20% to 80% relative humidity, non-condensing
Storage Humidity	10% to 90% relative humidity, non-condensing
