Darwin 4K.

2160p 30Hz

H.265. Hardware accelerated encoding

Low bandwidth, high quality pictures.

Receive 4 sources and output Multiview.

Stereo Analog input on TX, output on RX

Independent RS-232 routing.

WebUI with networked API

Unicast and Multicast.

Small form factor.

No fans. Only fans.

TAA Compliant.

Darwin 4K. The Next Episode.

The Darwin story continues with Darwin 4K. Designed to distribute stunning 4K60 4:4:4 video with hardware accelerated H.265 encoding, Darwin 4K delivers exceptional image quality at remarkably low bitrates. Compact, powerful and simple to deploy, Darwin supports PoE or DC power, unicast and multicast workflows, for one to one, and one to many configurations.

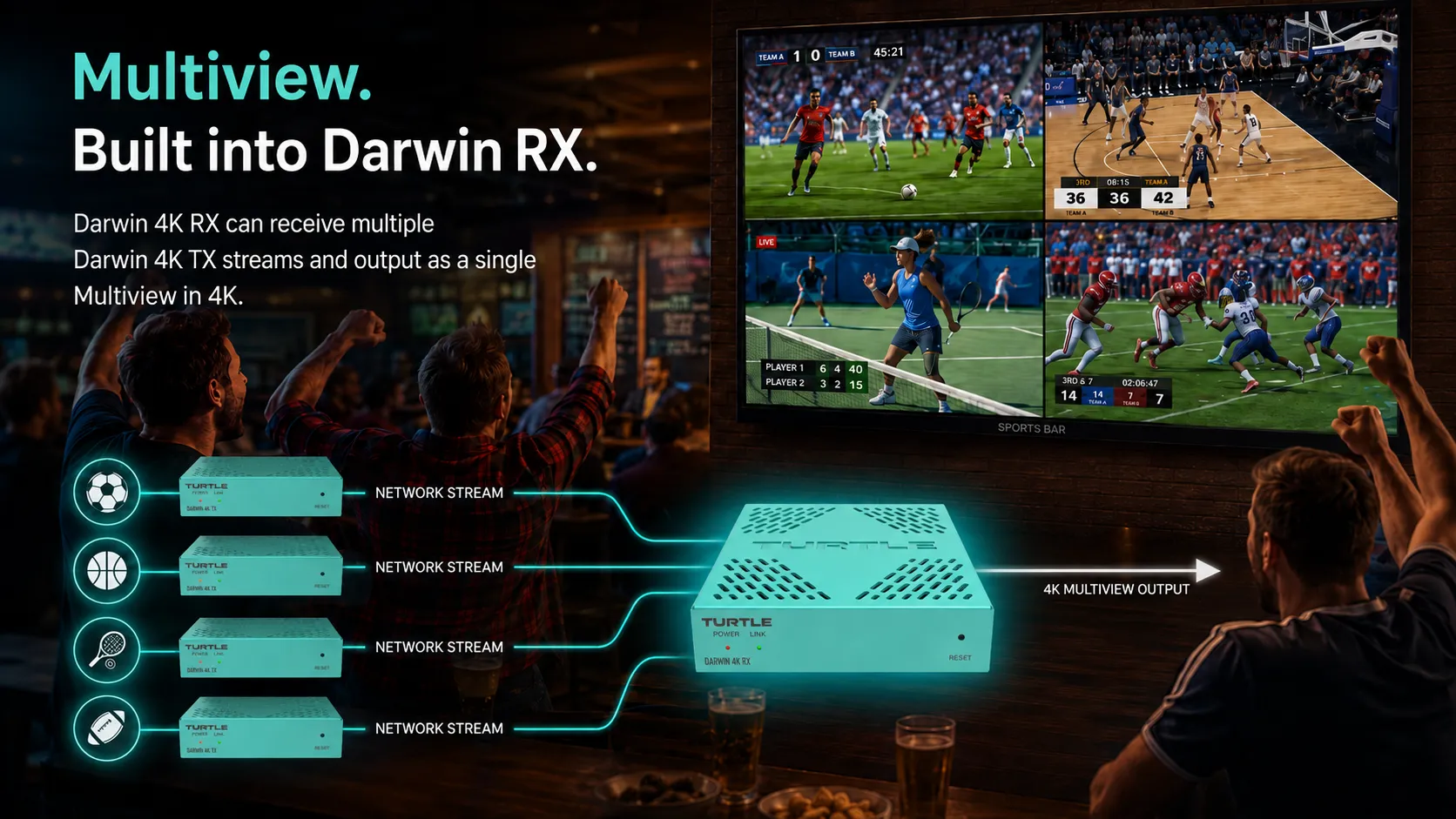

Darwin 4K goes further. A single Darwin 4K RX can receive and display multiple Darwin 4K TX streams as a single multiview output. Designed for sports bars, control rooms and anywhere content needs to reach screens, Darwin 4K delivers scalable AV over IP for installations of any size.

The Darwin 4K Fam.

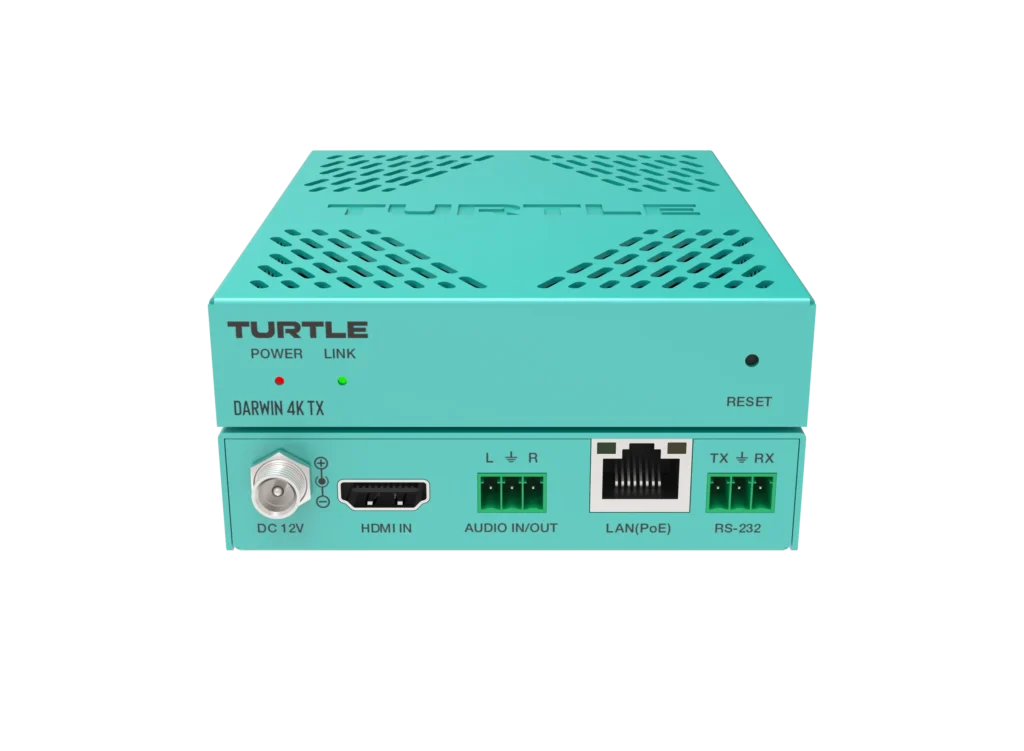

DARWIN 4K TX

Low latency H.265 HDMI Encoder

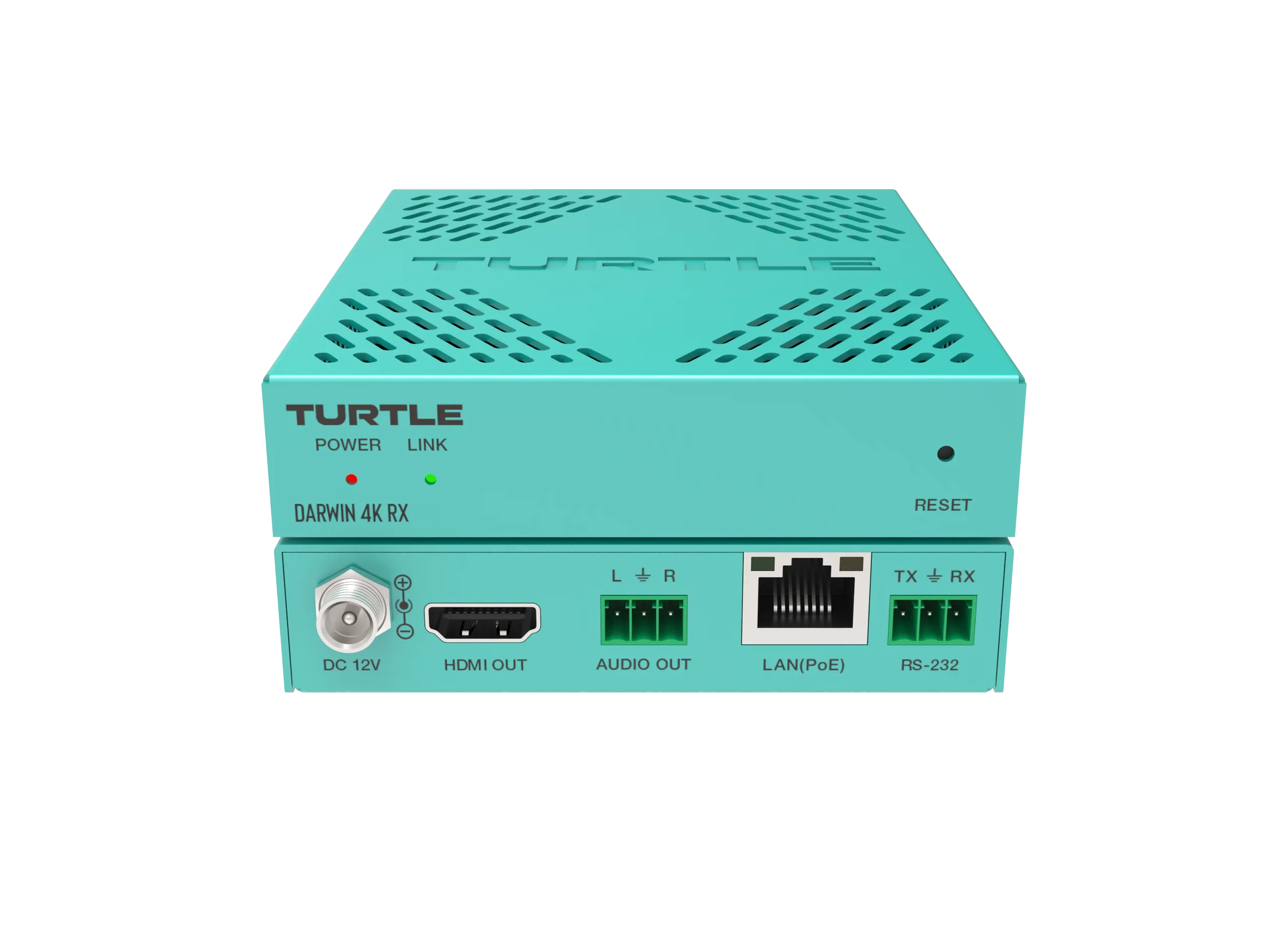

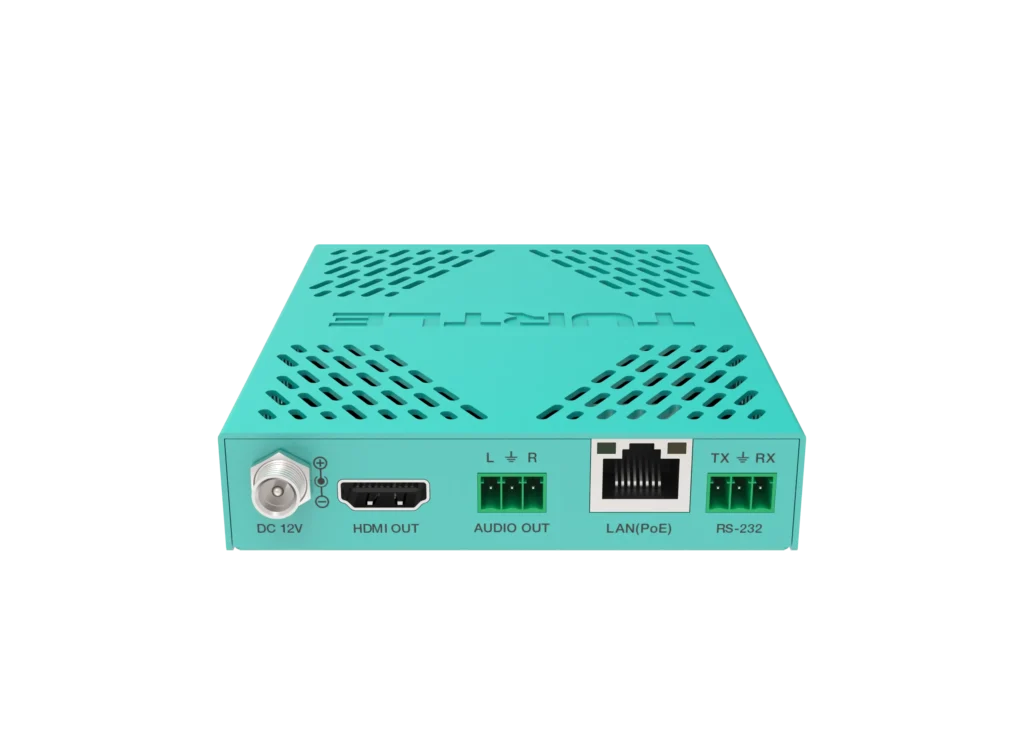

DARWIN 4K RX

Low latency H.265 HDMI Decoder

DARWIN 4K Control

Advanced Control and Management Box

2160p 30Hz

The Darwin 4K delivers pristine 3840 x2160 UHD resolution at 30Hz, ensuring true-to-life color and exceptional detail.

H.265. Hardware accelerated encoding.

The Darwin 4K leverages H.265 hardware acceleration for ultra-efficient video compression, delivering stunning 4K quality at reduced bitrates.

One to One. One to Many.

Configure a direct 1-to-1 connection for simple point-to-point, or scale up with 1-to- Many multicast, distributing your content to multiple endpoints simultaneously.

From Sports Bar to Mission Control.

One minute it’s every game on the wall. The next, the main event takes centre stage. Darwin 4K makes it easy to switch between overview and focus, delivering the flexibility needed for sports bars, security operations, network monitoring, control rooms, and live event environments.

36 Sources. One View.

Why choose between games when you can watch them all? Darwin 4K can display up to 36 sources simultaneously on a single 4K screen, giving operators, venues, and control rooms complete visibility at a glance. Every source is live, every source is available, and nothing gets missed.

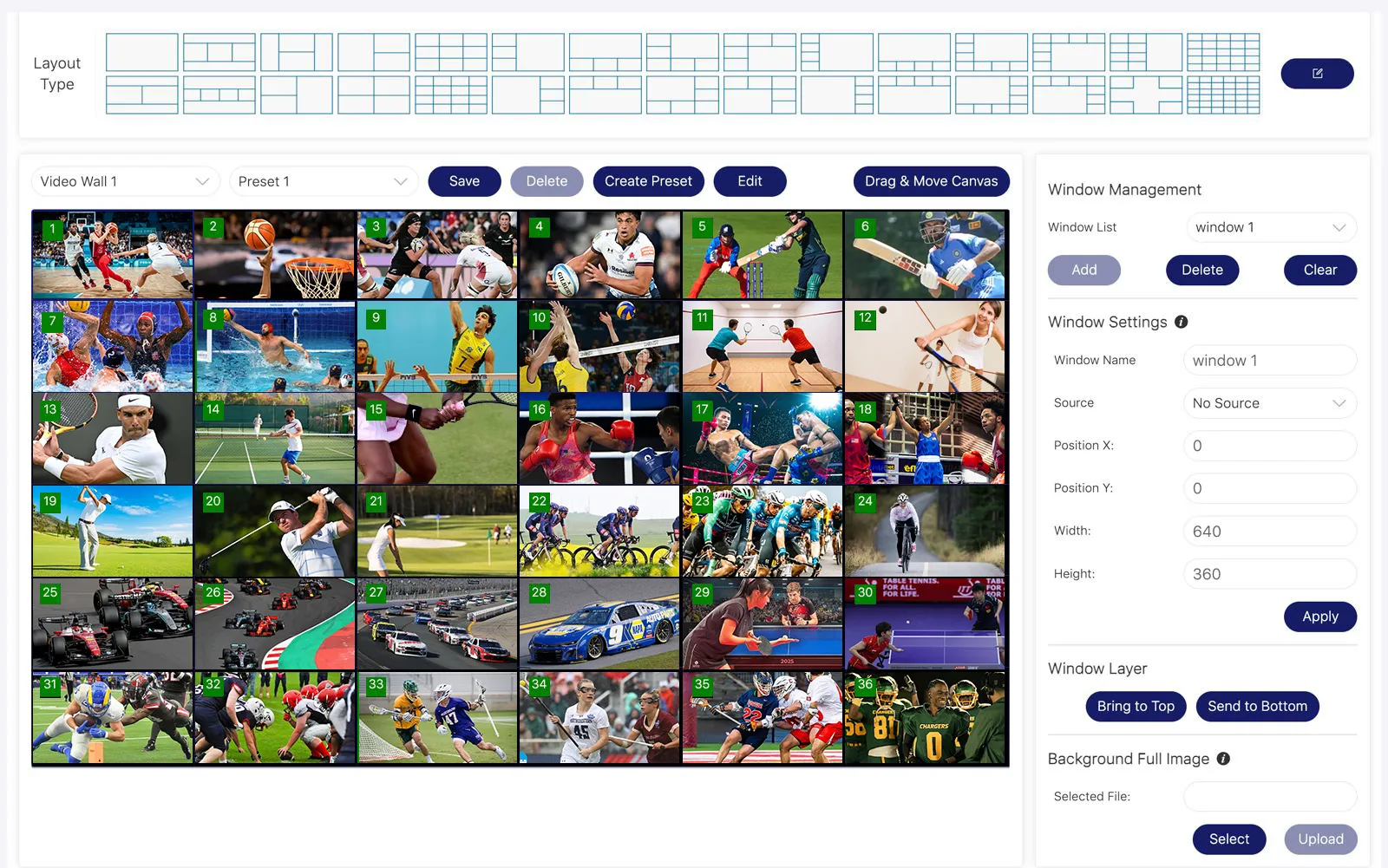

Build Your Perfect Multiview.

Drag, resize, layer, and position windows exactly where you want them. Create custom layouts in seconds, save them as presets, and instantly recall the right view for any event, shift, or venue. From simple quad splits to complex 36-window mosaics, Darwin 4K adapts to the way you work.

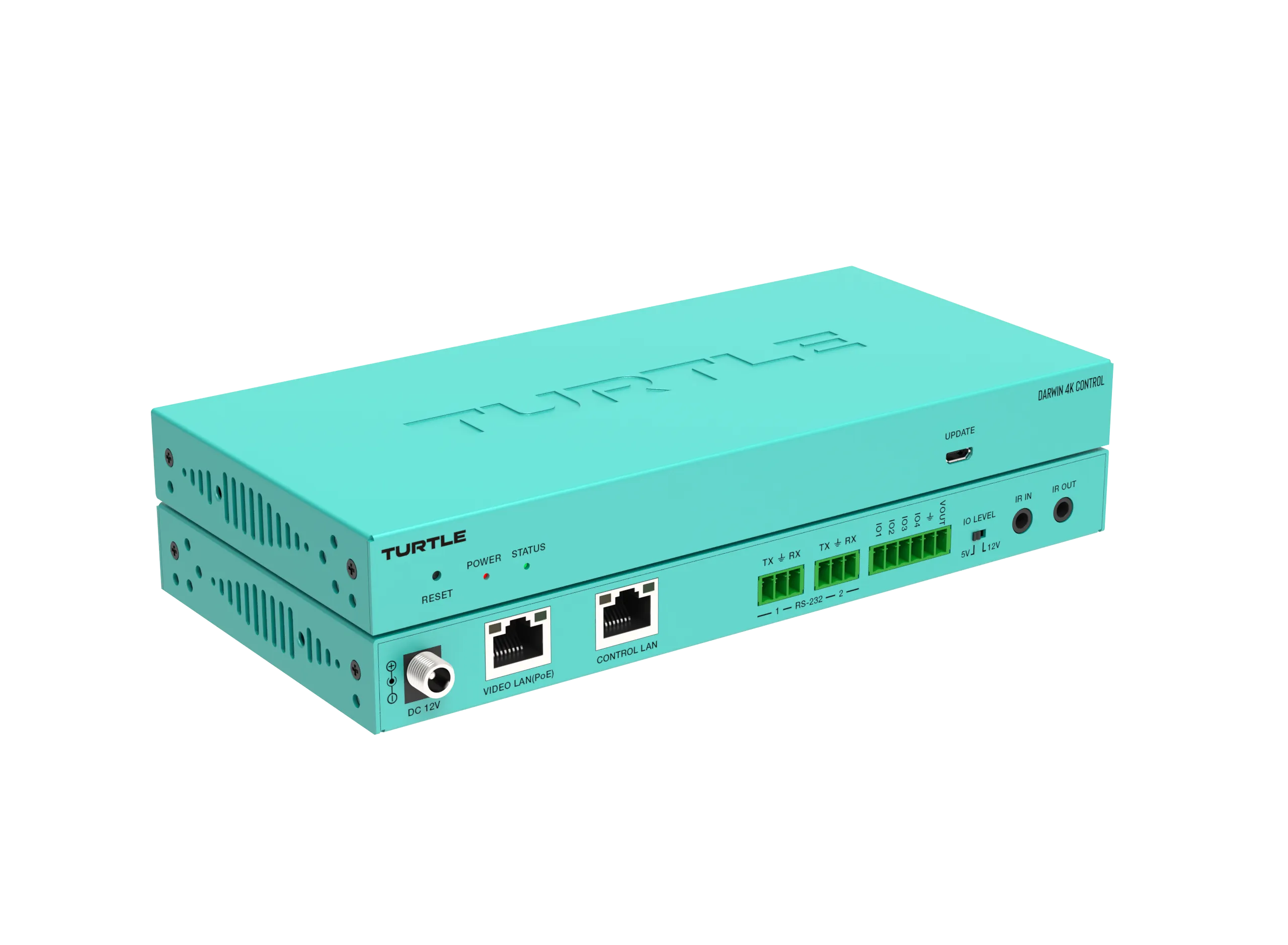

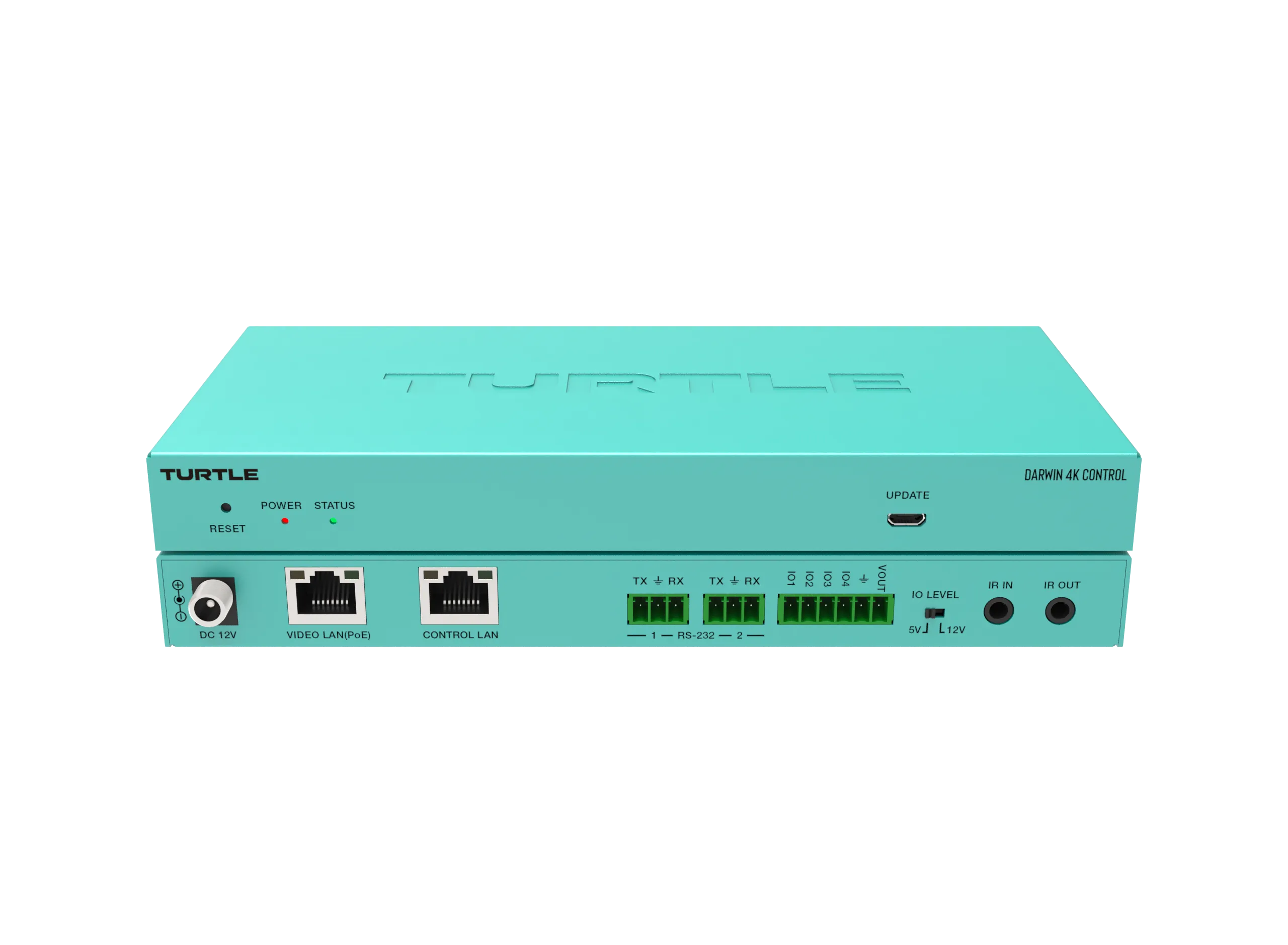

Add Darwin 4K Control for extra features.

Adding Darwin 4K Control hardware to your Darwin 4K cluster adds a ton of advanced features and simplifies management. Darwin 4K Control enables centralized WebGUI management, API support, and robust security with AES256 encryption, HTTPS, and SSH login. Dual network ports separating AV and control will keep the IT admins happy, while dual RS-232 ports and 4-channel GPIO control enable precise device management and trigger automation. Drag-and-drop routing with video previews and advanced video wall management makes managing your network of Darwin 4K Transmitters and Receivers a breeze.

WebGUI for Centralized Management and Control.

Easily configure and manage your entire network of Darwin 4K Transmitters and Receivers through an intuitive WebGUI. Simplify complex setups with centralized control at your fingertips.

Super easy Drag-and-Drop Routing.

Routing signals has never been easier. Built directly into the WebGUI is an intuitive drag and drop interface, you can quickly and easily route one to one or one to many.

Analog Audio I/O.

Analog audio is covered on both TX and RX with a left and right analog input on the Darwin TX and left and right Analog breakout on the RX. Both ends use Euroblock connecters.

HDCP 1.4.

Ensure total compatibility and compliance with copyright standards using HDCP 1.4.

PoE. DC. Or both.

Power over Ethernet (PoE) streamlines installation with a single cable delivering both power and data, alternatively you can power with the included PSU. Or use PoE and DC for power redundancy.

Unicast. Multicast.

Darwin 4K supports both Unicast and Multicast. Use Unicast for direct, one-to-one transmission, ensuring reliable performance with minimal network bandwidth. Switch to Multicast for efficient one-to-many distribution, perfect for sending the same content to multiple endpoints simultaneously.

Small Form Factor.

The compact design makes it effortless to mount discreetly behind screens or in tight spaces. Perfect for sleek, professional installations.

Independent RS-232 routing.

Control each display independently with RS-232 routing, enabling precise communication between devices. Customize commands for specific endpoints without interfering with others, ensuring seamless integration and control in complex AV setups.

Advanced EDID Management.

Darwin 4K simplifies connections with advanced EDID management, featuring automatic detection, as well as the ability to load custom EDID tables directly through the WebGUI.

Built tough with all metal chassis.

Darwin are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.

Control. Your way.

With native Qsys driver support, Darwin 4K drops straight into the world’s leading control ecosystems.

Or take full control with our Unified API and build in any language you choose.

Click here

Rack ’Em or Stack ’Em.

Bring a little bling bling to your rack and mount your Darwin 4K Tx and Rx Turtles with the optional rack-mount kits. With two available options you can rack up to 12pcs of Darwin in the 4RU Rack Kit, or 4pcs in 1RU Rack Kit.

Networking and Security. Keep the IT team happy.

Advanced security features include AES256 encryption, HTTPS, and SSH login.
These features ensure your data and controls remain safe, and your network is
protected from unauthorized access.

Turtle Aqua. 3262 C.

We’re calling it Turtle Aqua. You can too. The actual colour is 3262 C Pantone. We choose this colour so that even when you have them mounted in places you can see them you know they still look seriously cool.

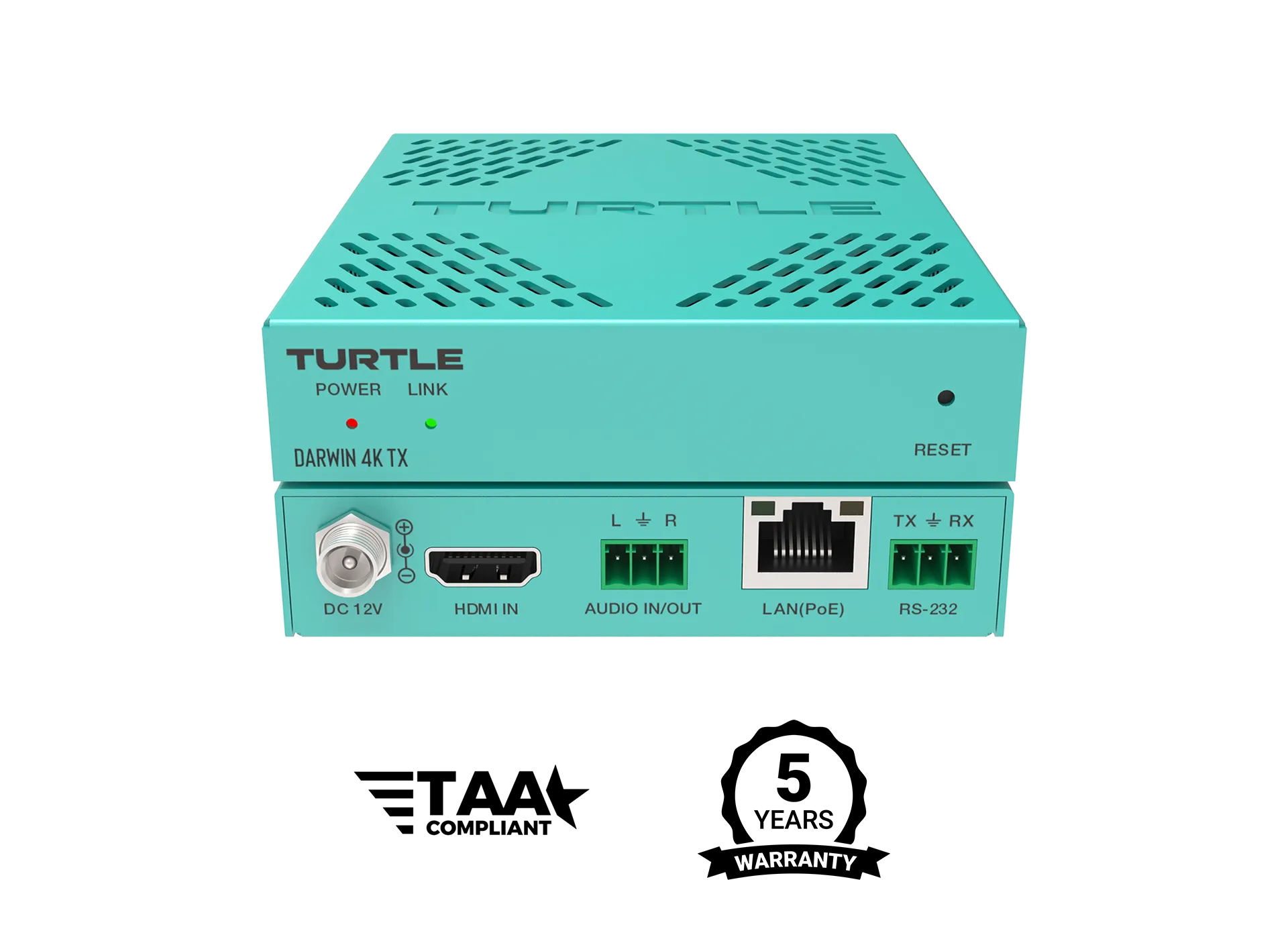

TAA Compliant.

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

5 Year Warranty with Advance Replacement.

Turtle proudly offers a 5 Year warranty on our Darwin 4K devices. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle advance replacement warranty on all our products.
