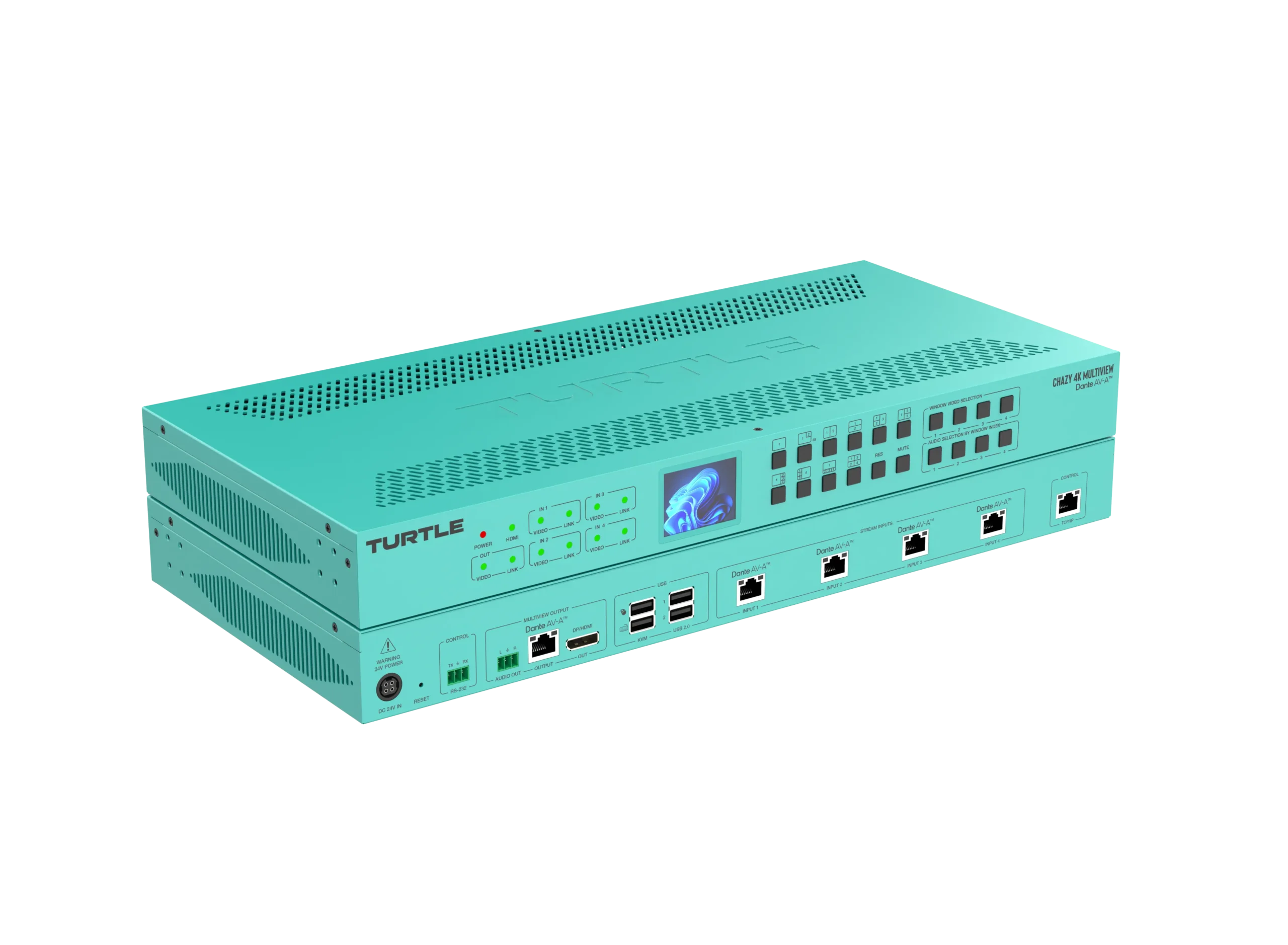

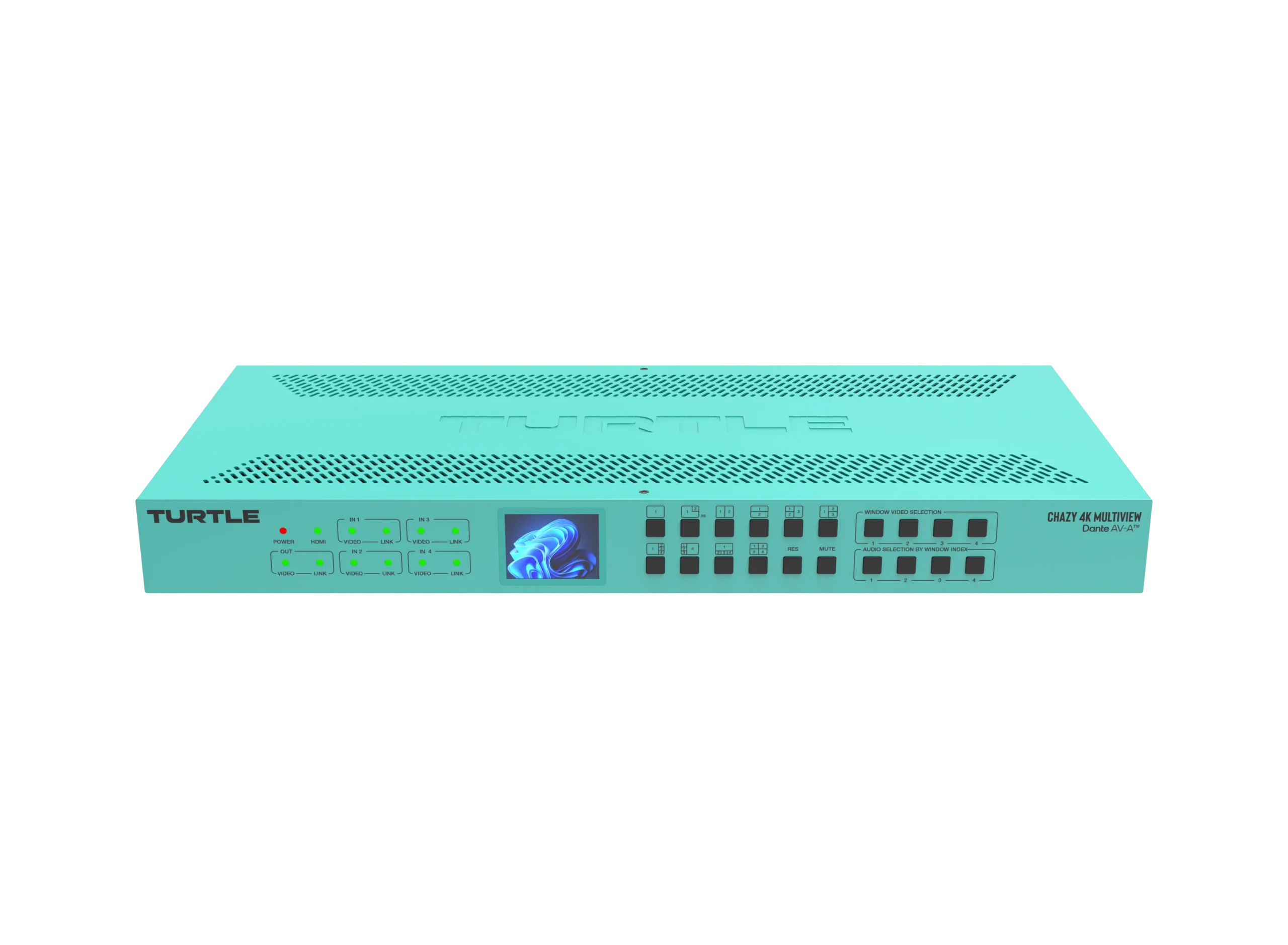

CHAZY 4K Multiview

Overview

Meet Chazy 4K Multiview, the world’s first Dante AV-A multiviewer and a major leap forward for AV over IP workflows. Receive four 4K Dante AV-A streams from anywhere on the network and transform them into a fully customisable multiview experience with complete freedom over layout, control and distribution.

Output locally using our revolutionary HDMI and DisplayPort combo connector or simultaneously distribute the multiview back onto the network as a Dante AV-A stream for unlimited Chazy 4K receivers. Built for control rooms, live production, corporate environments and mission critical spaces where flexibility matters.

Technical

Product4K60 Dante AV-A 4-input, 2-output Multiview with KVM mouse roaming
Video Format4K60 4:4:4 Dante AV-A/JPEG 2000
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2
Video Bandwidth18Gbps
Video ResolutionUp to 4K2K@60Hz
CompressionDante AV-A/JPEG 2000, visually lossless compression
Latency1 to 2 frames
Dante AV-A™Dante AV-A™ license included
Audio FormatsLPCM 2.0/5.1/7.1, Dolby Digital, Dolby Digital+, Dolby True HD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
Audio InterfaceEuroblock audio break-out
Multiview FeaturesMultiple multiview layouts, including user-defined layouts; background image mode for digital signage applications
DisplayActive video preview LCD display

Connections

IP Streams4 decoder inputs and 1 encoder output over IP and local HDMI output
Video I/O4 inputs and 1 output
Network1G managed network
ControlFront panel buttons, local TCP/IP with built-in web UI, and Chazy Control / Chazy Contorl Pro
Signal Pass-ThroughRS-232 and USB 2.0 pass-through

Mechanical

HousingMetal enclosure
ColorTurtle Aqua
