USB and 4K60 video. From here to over there.

The Turtle AV USB Extender Kit pushes the boundaries of connectivity, delivering high-speed USB and uncompressed 4K60 video in a single, compact solution. Whether it’s a full-scale AV install or smaller BYOD meeting spaces, this kit has you covered:

  • 4K60 (4:4:4 8bit) video and USB 2.0 signals up to 130 feet / 40 metres
  • 4K30 (4:4:4 8bit) video and USB 2.0 signals up to 230 feet / 70 metres
  • High Dynamic Range pass through
  • 100W USB-C PD port for charging
  • Power over Cable (PoC) for simplified installs
  • API control for advanced system integration
  • Plug-and-play compatibility with universal device support
  • Subframe latency over a single CAT cable
  • Audio pass through

BYOD rooms, meet your new BFF.

Send 4K60 video input over USB-C from laptops, and other devices over CAT6/6a/7 cable and output via HDMI 2.0b to screens.

Subframe latency.

Your video meetings will be natural with almost zero latency between the USB Extender Tx and Rx.

Go long. Or go longer.

4K60 goes long. 4K30 goes longer. Whichever you choose the video is in 4:4:4 so your computer screen looks perfect on the big screen.

Teams and Zoom all day, baby.

The PD power pass through allows for an external USB power brick up to 100W to pass through power to the USB-C video connection, delivering power the device that’s plugged in. No more panic moments worrying about your device’s power, instead you can worry about how much coffee you need for those looooong meetings.

TX & RX? Host & Device? Both.

The Turtle AV USB Extender kit with 4K60 video is truly a product marketers’ worst nightmare. It’s a Tx and Rx set up for video, whilst being a Host and Device set up for USB 2.0 extension.

Power over Cable. POC.

Powering the actual units is super easy with PoC. Simply power either end and it will power the other unit over the CAT cable. That’s why we only included one power supply.

High Dynamic Range.

Passes through High Dynamic Range (HDR) formats, including HDR10, HDR10+, Dolby Vision, and HLG.

Audio pass through.

LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X are all supported.

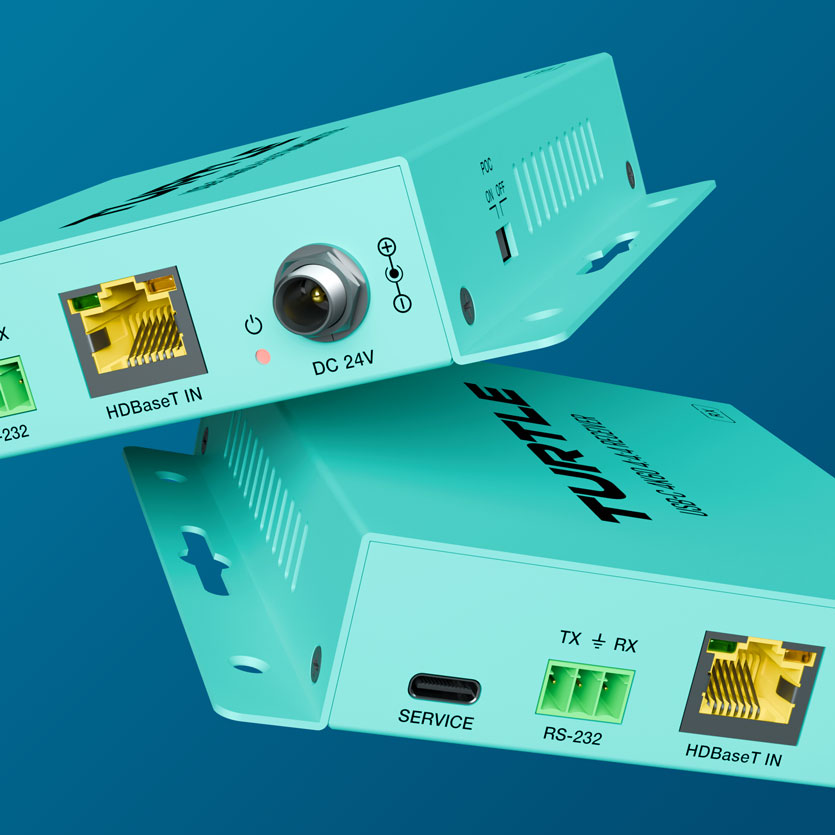

RS-232.

RS-232 signal pass-through supported for seamless control integration with third-party systems.

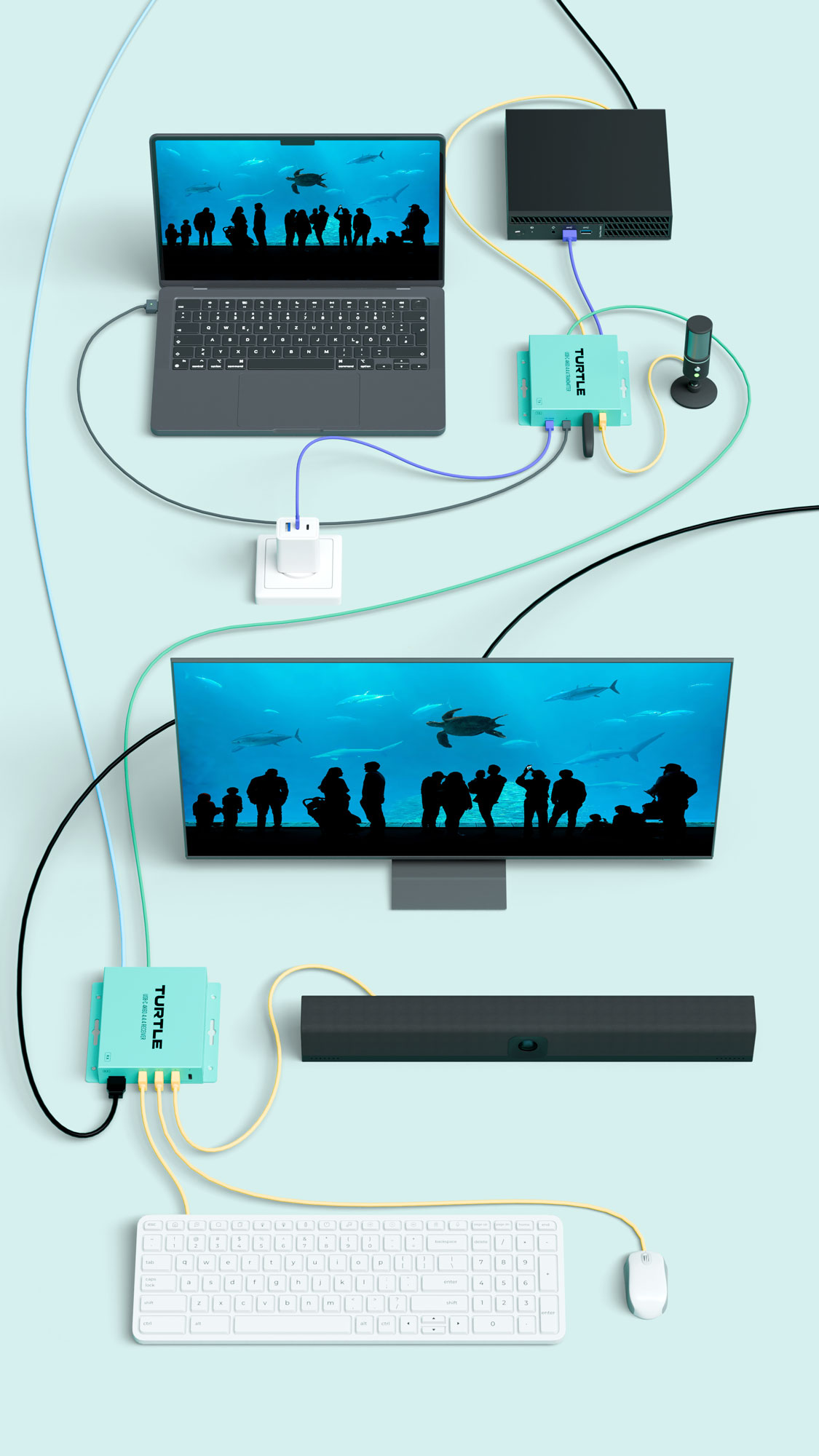

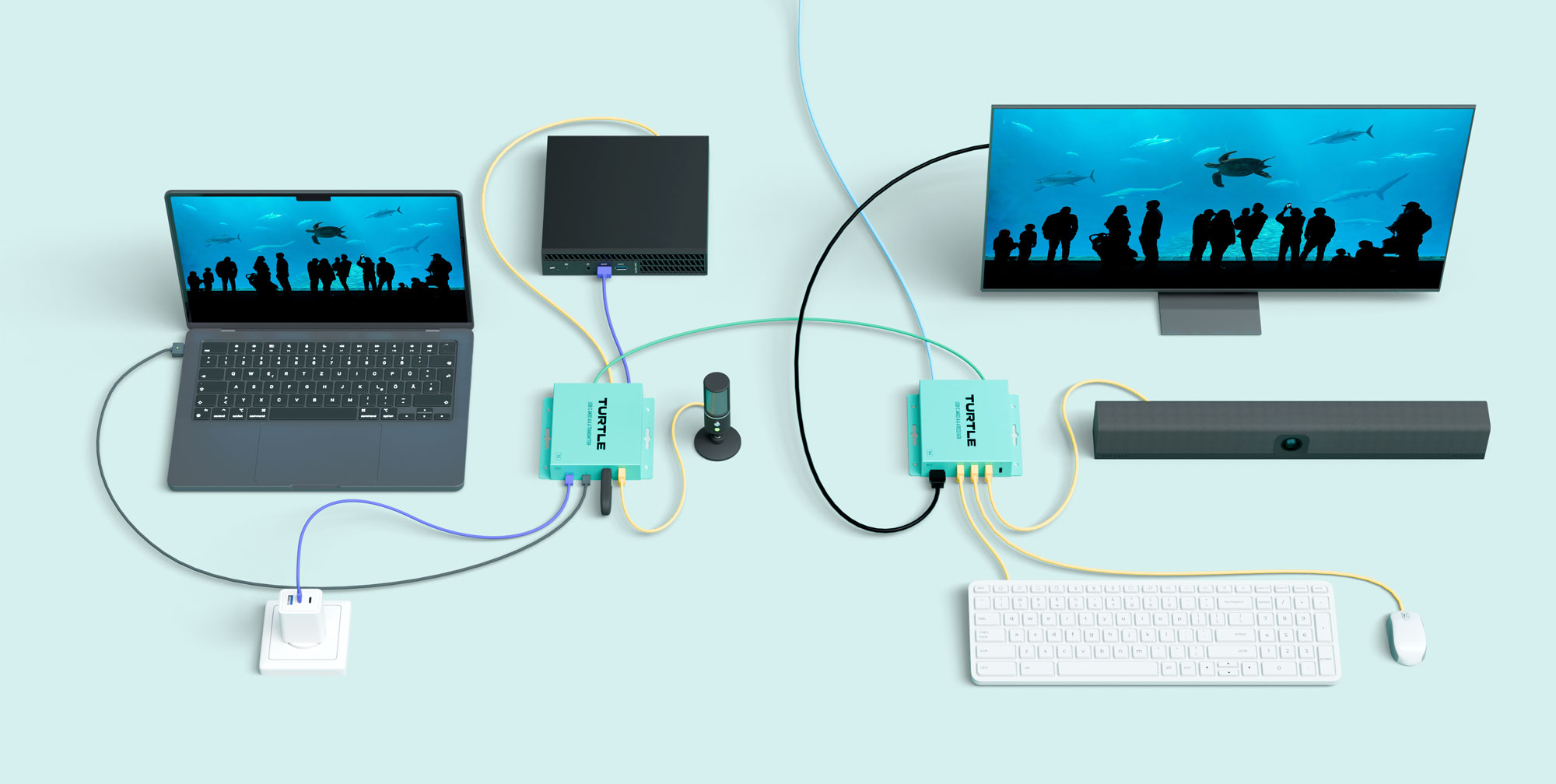

Power Supply: Power either Host (TX) or Device (RX);
the other is powered via CAT cable.

PC or Control System: Connected to TX through USB-C Service or RS-232

USB-C Charger: Connected to TX through USB-C

Mouse: Connected to RX through USB

Keyboard: Connected to RX through USB

Laptop: Connected to TX through USB-C Charging
TV or Monitor: Connected to RX through HDMI

Meeting Bar: Connected to RX through USB

Microphone: Connected to TX through USB

USB Storage: Connected to TX through USB

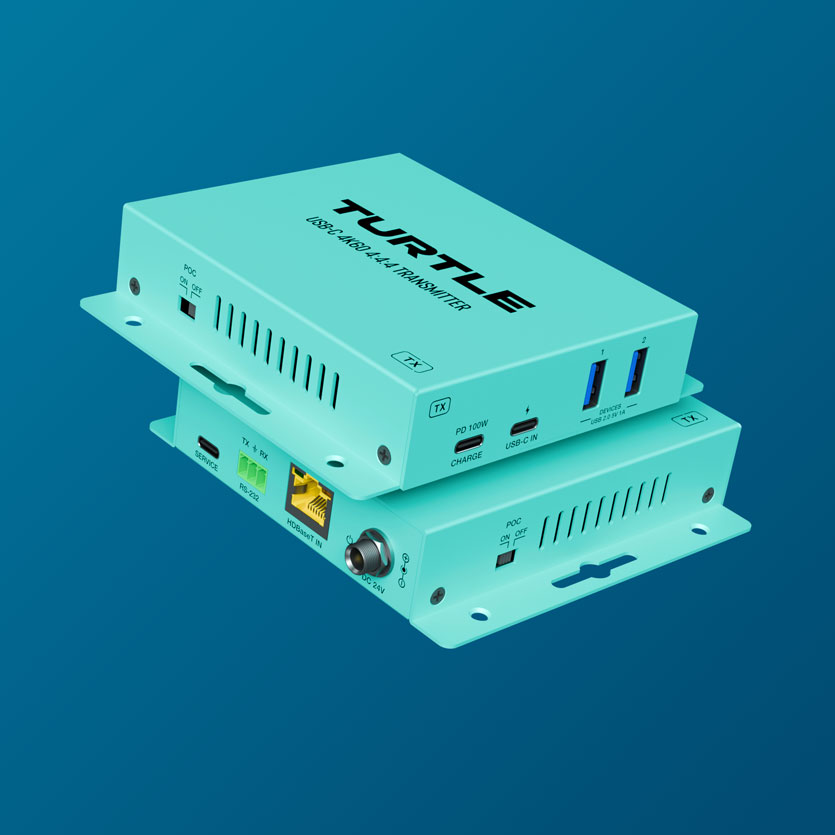

TX: USB-C 4K60 Extender

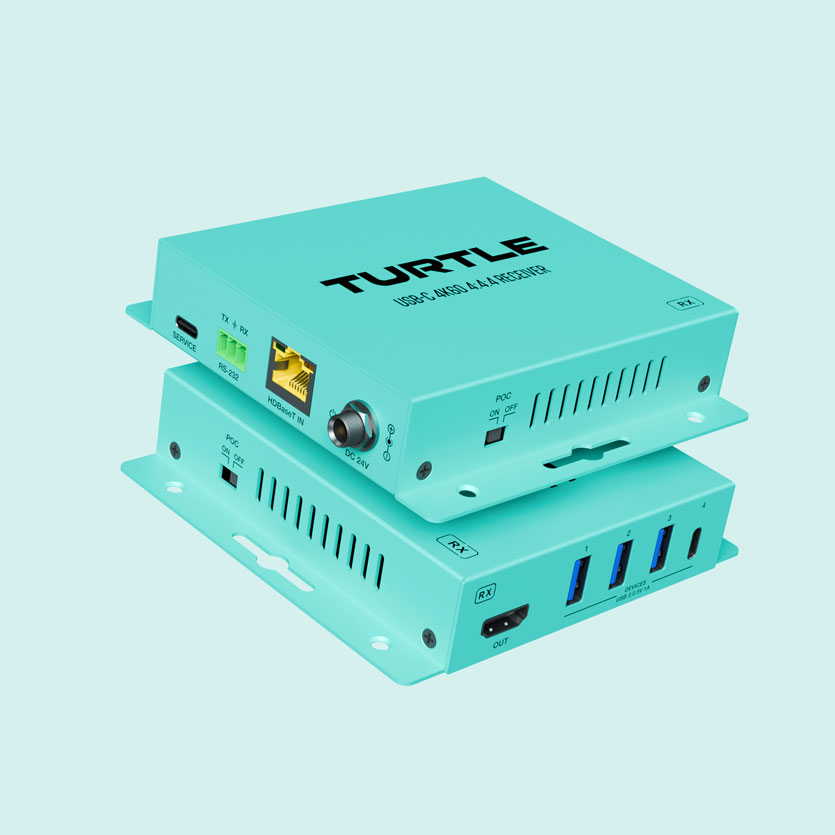

RX: USB-C 4K60 Extender

Power Supply:
Power either
Host (TX)
or Device (RX);
the other is
powered via
CAT cable.
PC or Control System:
Connected to TX through
USB-C Service or RS-232
USB-C Charger:
Connected to TX through USB-C
Mouse: Connected
to RX through USB
Keyboard: Connected
to RX through USB
Laptop: Connected
to TX through USB-C Charging
TV or Monitor: Connected
to RX through HDMI

Meeting Bar: Connected to RX through USB

Microphone:
Connected
to TX through USB
USB Storage:
Connected to TX through USB

TX: USB-C 4K60 Extender

RX: USB-C 4K60 Extender

API Support.

Seamlessly connect your Extender Kit with third-party systems through a powerful API. Remotely monitor device status, manage EDID, HDCP, and more.

Mac & PC Resolutions issues. Resolved.

Set your EDID for the screen in the BYOD room and resolution issues (and support tickets) are gone forever with seamless switching between Mac and PC.

Tough. Compact.

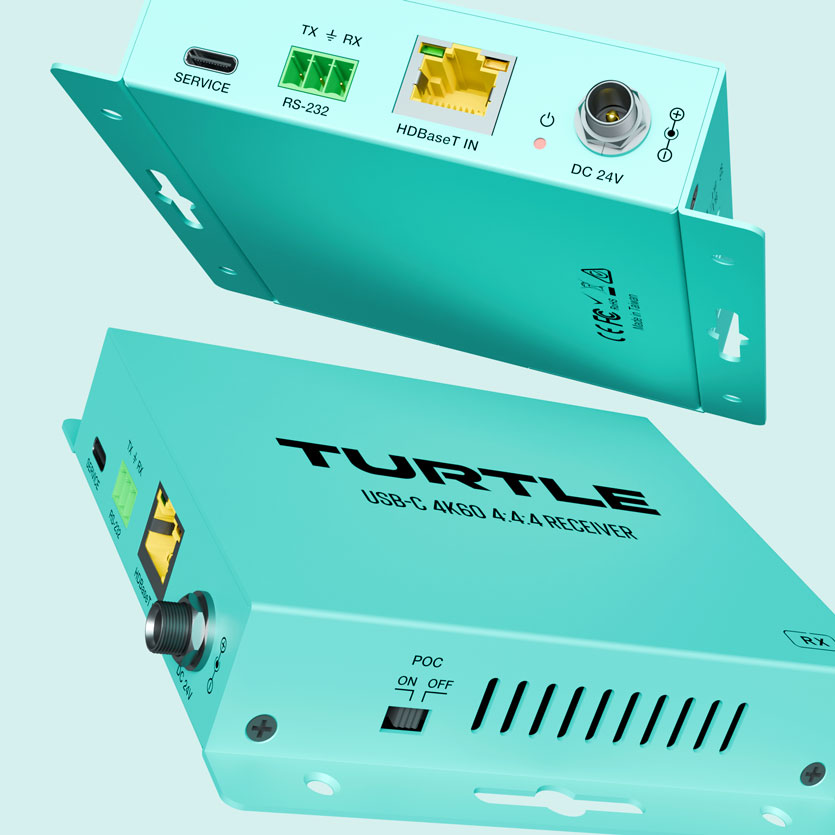

Both Tx and Rx (Host & Device. See it’s hard isn’t it) Extenders are built tough in full metal housing in a compact form factor making them ideal installation in AV racks, conference rooms, or behind equipment.

Turtle Ears.

Both endpoints come with rack mounting attachments pre-attached for easy installation under boardroom tables, behind screens, racks. We’re calling them Turtle Ears from now on.

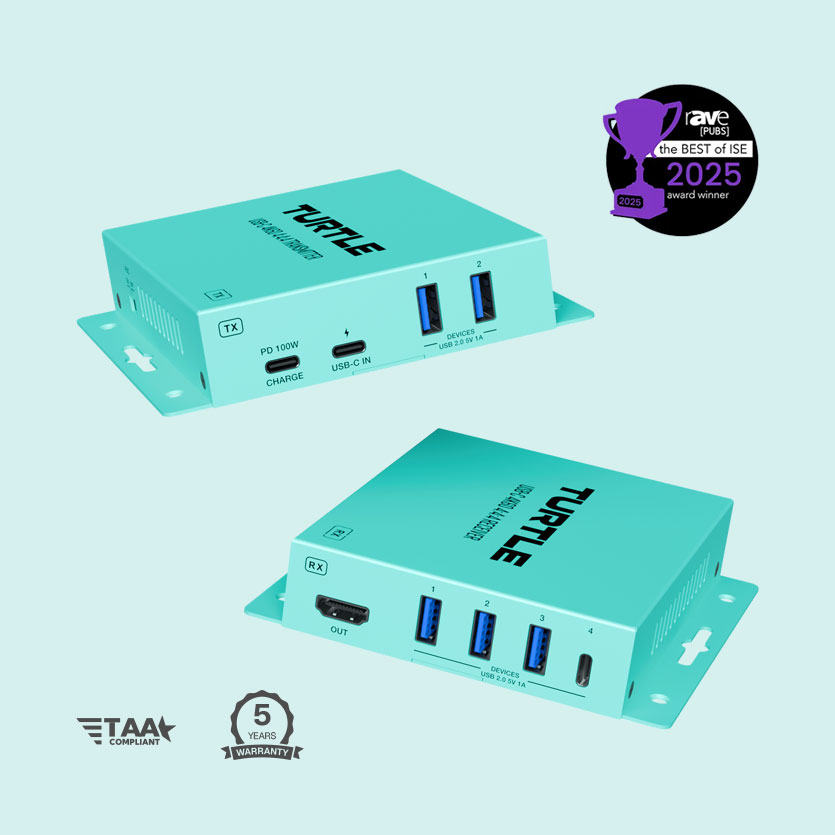

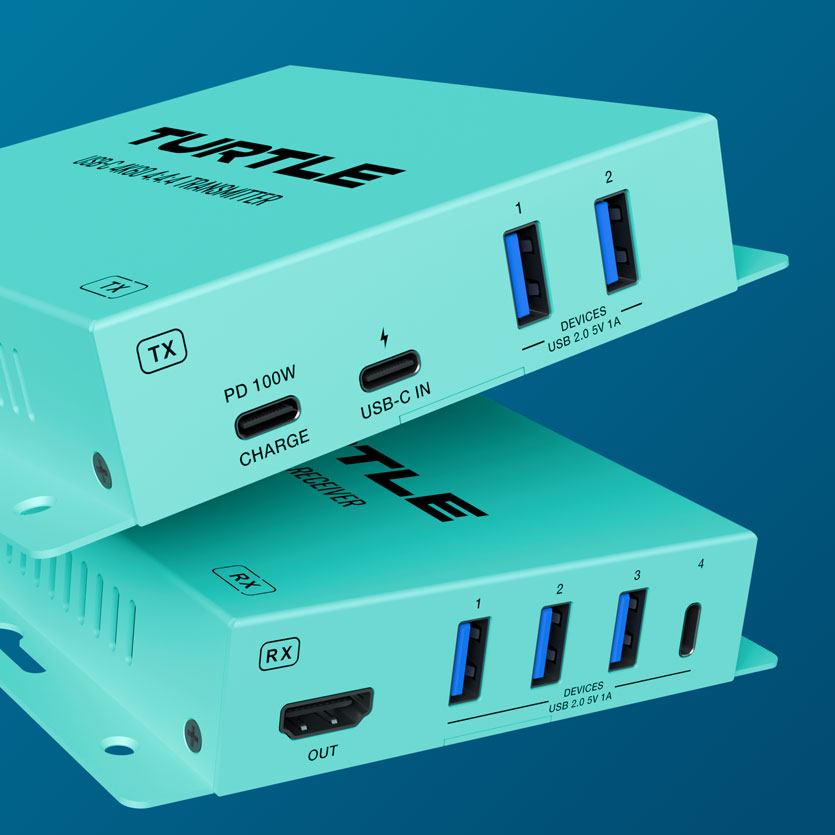

USB-C Video input. USB 2.0 extension.

4K video comes in over USB-C whilst offering USB 2.0 extension.

TAA Compliant.

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

5 Year Warranty with Advance Replacement.

Turtle proudly offers a 5 Year warranty on our USB Extender devices. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle advance replacement warranty on all our products.
