Mineola MICro

$2999
USD

Mineola MICro. Small Box. Big Mic Energy.

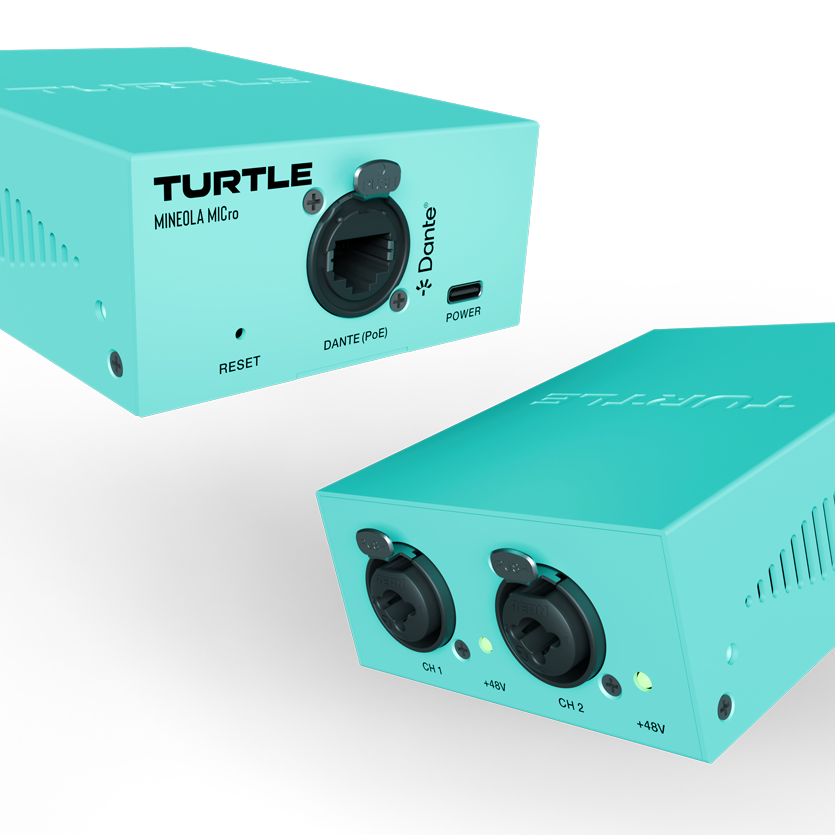

The Mineola MICro seamlessly connects microphones and analog audio sources to the Dante ecosystem in an ultra-compact form factor. Featuring a high-quality mic preamp, 48V phantom power, XLR and TRS combo connectivity, PoE and USB-C power, integrated DSP, and WebUI control, MICro is the mount-anywhere Dante mic preamp you’ve been looking for.

Mic Pres. Yes Plural.

MICro has two inputs, and each has its own high-quality mic preamp. Dynamic or condenser, we’ve got you.

PoE with Phantom Power.

Mineola streamlines setups by combining Power over Ethernet (PoE) with 48V Phantom Power on both XLR inputs.

DSP control via WebGUI.

The built-in DSP WebGUI makes managing your Dante Bridge super easy and delivers even more value to this little powerhouse. With the WebGUI, every feature is at your command.

Configure Audio Precisely:
Adjust output settings, manage EQ profiles, and control audio delay for Analogue and Dante outputs.

Save and Recall Presets:
Create up to 5 customizable presets for quick scene changes, perfect for dynamic setups.

Monitor and Manage Network Settings:
Switch between DHCP and Static IP modes, configure Telnet ports, and use the domain name for quick access.

Advanced System Utilities:
Modify passwords, reboot the system, update firmware, and export/import settings with ease.

Streamlined Setup:
Control everything from input sources to auto-standby times, all through an easy-to-use interface.

Total Dante Software Compatibility.

Mineola MICro is 100% compatible with all Dante software products, including Dante Controller, Dante Virtual Soundcard (DVS), Dante Domain Manager, Dante Connect, and Dante Director.

Studio Quality Audio. Live.

Supporting Dante audio sampling rates up to 96kHz at 24 bit, MICro delivers pristine audio performance for demanding professional environments. Installed or on tour, MICro won’t let you down.

Latency. Your Call.

Configure Dante latency with support for 2, 3, 5 or 10 milliseconds to suit your network design and integration.

Tested in the Harshest Conditions.

Mineola was deployed in the extreme conditions of Survivor Québec in Panama, delivering rock-solid Dante audio across a fully mobile broadcast setup. With constant setup and teardown, long transport routes, and exposure to heat, humidity, and salt air, the system was pushed far beyond typical install environments.

Despite the challenges, Mineola provided a stable and flexible audio backbone for the entire production, handling critical signal paths without interruption. Built for real-world reliability, it proved itself where performance isn’t optional, and failure simply isn’t an option.

Read the whole story here.

One Connector. Two connections.

XLR and TRS combo connectors give MICro the flexibility to handle microphones and line-level audio sources through a single input. One connector, more possibilities.

Mount Anywhere.

Included mounting ears make installation fast and flexible across permanent installs and live productions. Under tables, inside racks, under lecterns, side of stage, or wherever audio needs to join the network.

Locking Connectors. Designed for Live.

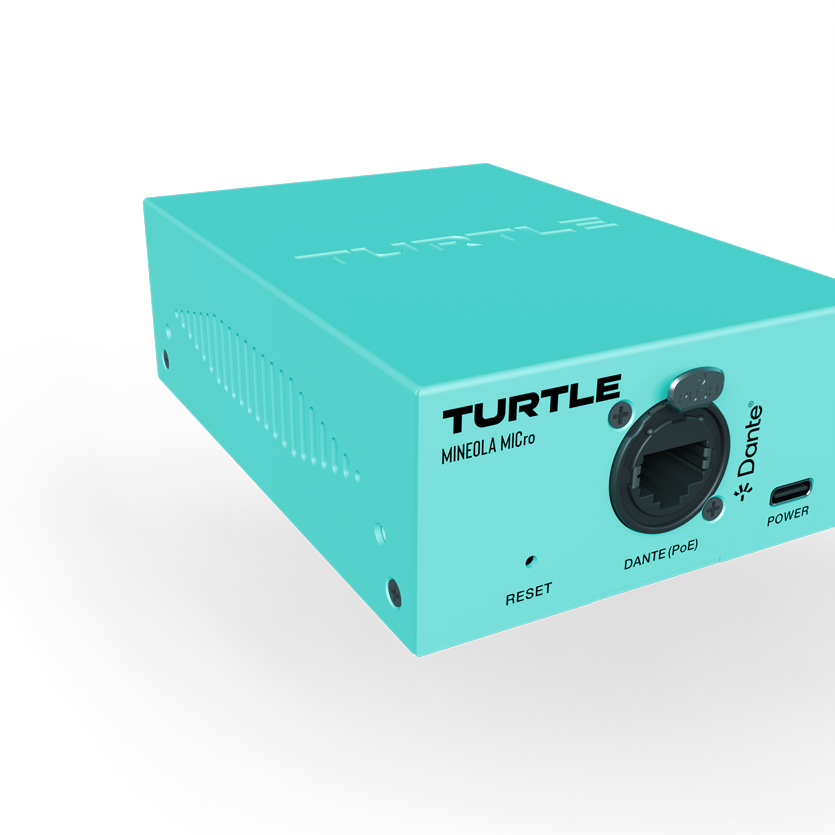

Mineola MICro features locking connectors providing maximum security in live environments. The PoE network port is a locking Neutrik etherCON connector, and of course, the XLR connectors are locking too.

AES67 lives here too.

Mineola Fam supports AES67 and Dante. Toggle between Dante and AES67 within Dante Controller.

Q-SYS. Bitfocus. OpenAVC. Open API.

MICro integrates seamlessly with native Q SYS plugin support, Bitfocus Companion integration, OpenAVC, and an open API for custom workflows. Push buttons, automate actions, or build something entirely your own. You’re in control.

Built tough with all metal chassis.

Mineola are housed in an all-metal chassis for making them tougher than a turtle shell. Life on the road demands it.

TAA Compliant.

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

5 Year Warranty with Advance Replacement.

Turtle proudly offers a 5 Year warranty on our Mineola devices. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle advance replacement warranty on all our products.

The Mineola Fam.

Mineola MICro
2 XLR IN
Dante Audio Bridge

Mineola 2×2
2×2 XLR
Dante Audio Bridge

Mineola 4×4
4×4 XLR
Dante Audio Bridge

Mineola 8×8
8×8 XLR
Dante Audio Bridge

Mineola 16×16
16×16 XLR
Dante Audio Bridge
