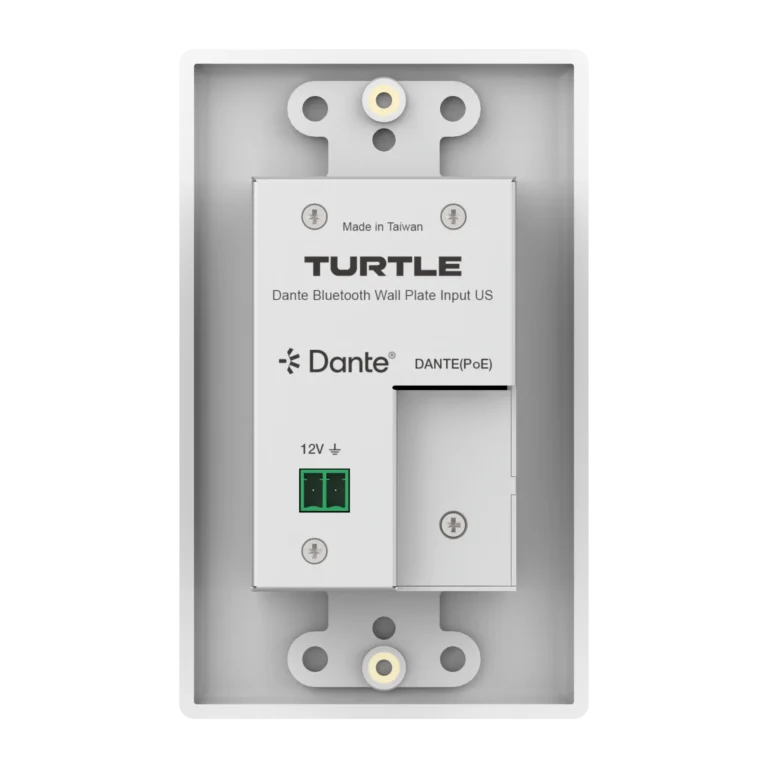

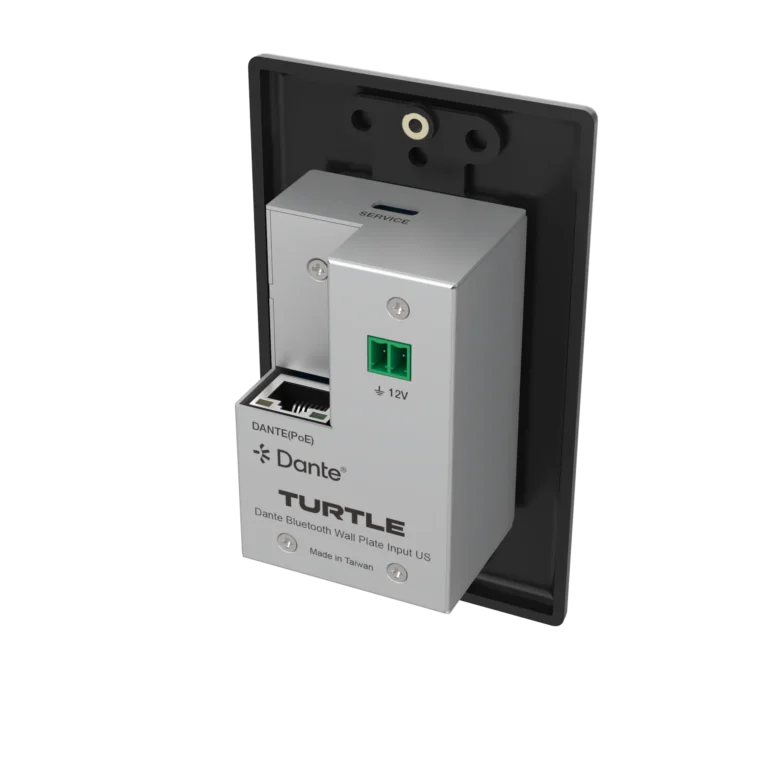

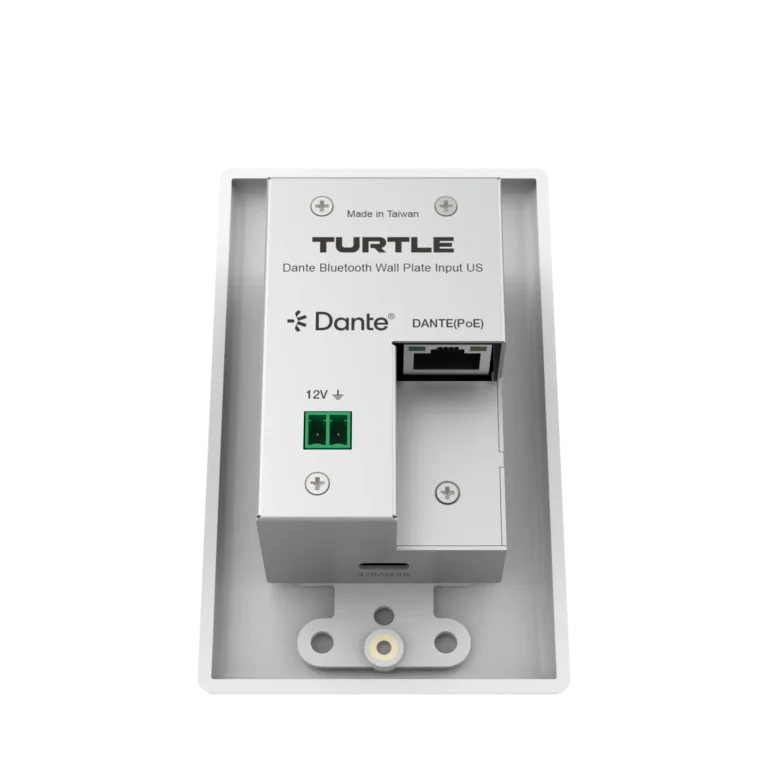

This architectural interface enables professional Bluetooth integration into Dante audio networks, accommodating both US 1-Gang Decora and standard EU Wall Box form factors. Beyond high-fidelity audio conversion, the device features a comprehensive networked API that grants control systems full command over connection states, including programmable discovery, pairing authorization, and forced disconnection. The API supports bidirectional control for playback management and provides real-time metadata extraction for artist and track information. Available in black or white finishes, this wallplate delivers a managed, secure, and beautiful endpoint for commercial audio installations.
Input
Output
Control Method
Network Bandwidth
Audio Latency
Audio Formats
Frequency Response
Audio S/N Ratio
Audio THD+N
Transmission Distance
ESD Protection
Two-channel Bluetooth audio
Dante digital audio
WebUI, API
100Mbps
Configurable Dante® device latency
(Supports 2, 3, 4, 5 or 10ms configurable using Dante Controller)
Bluetooth IN [Digital audio input, V5.1, SBC/AAC/APTX/ APTX-LL/APTX-HD, 2CH, 44.1K-48KHz 16/24Bitt]
Dante IN/OUT [Digital audio 4CH, 44.1K-96KHz 16/24Bit]
20Hz to 20kHz
≥ 100dB
≤ 0.1%
328ft/100m (CAT6/6A/7)
IEC 61000-4-2:
±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Input
Output
Others
1x Bluetooth input [Digital audio, internal antenna] [Bluetooth in V5.1, SBC/AAC/APTX /APTX-LL/ APTX-HD, 44.1K-48KHz 16/24Bit]
1x DANTE(PoE) [RJ45 connector, supporting PoE] [Digital audio out, 44.1K-96KHz 16/24Bit]
1x SERVICE [USB-C port, 12-pin female] 1x PAIR button with blue LED
1x DC 12V [2pin-3.5mm phoenix connector]
Housing
Color
Dimensions
Weight
Power Supply
Power Consumption
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Plastic panel + Iron chassis
White panel + Silver chassis
45mm [W] x 40mm [D] x 105 mm [H]
149g
DC input: 12V/1A
PoE input: PoE IEEE802.3af Class 0
1.8W (Max)
32°F ~ 104°F / 0°C ~ 40°C
-4°F ~ 140°F / -20°C ~ 60°C
20% ~ 80% (Relative humidity, non-condensing)
10% ~ 90% (Relative humidity, non-condensing)
