Desription

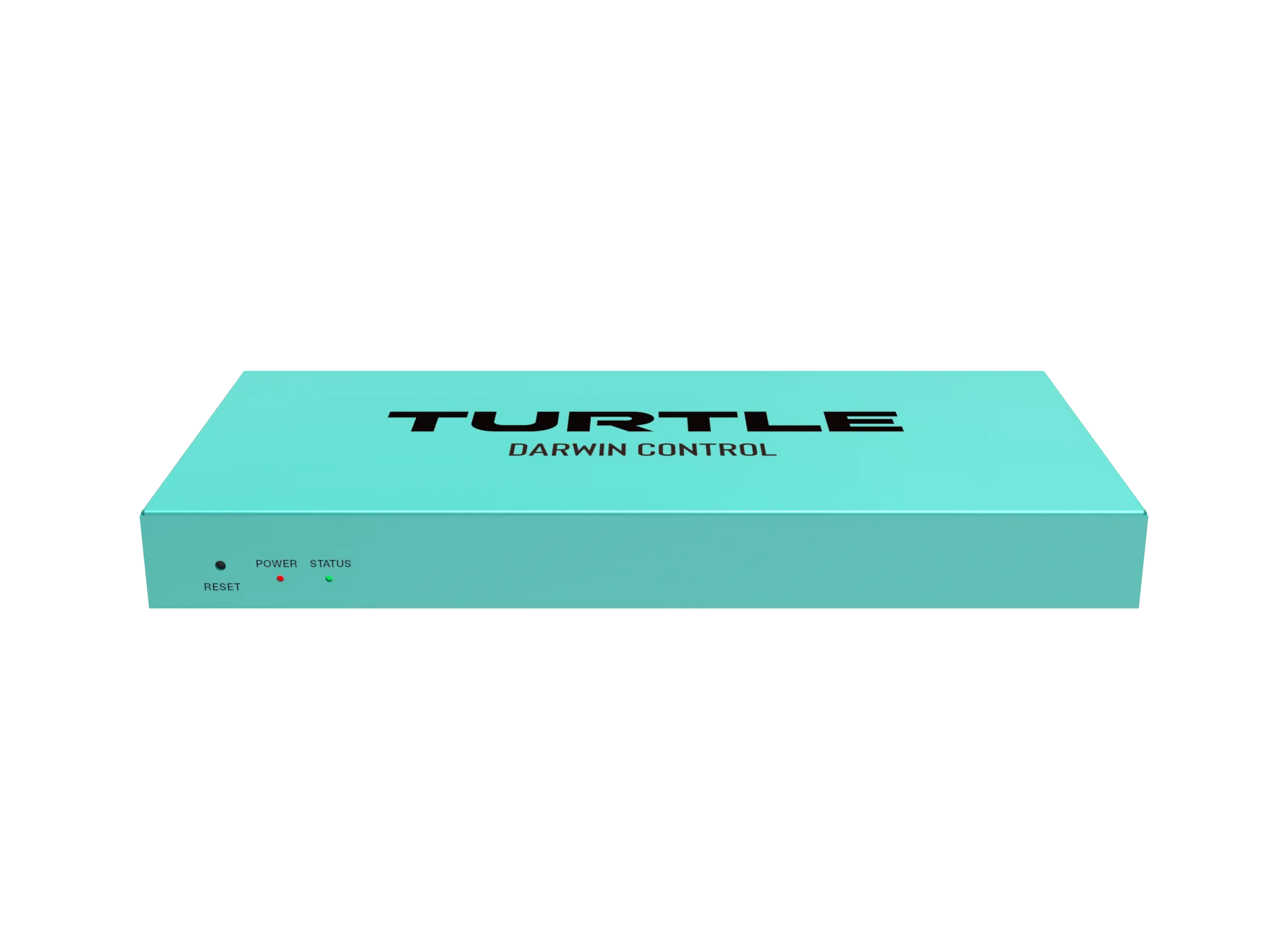

The Darwin Control box simplifies management of the Darwin HD series with a powerful built-in WebGUI and centralized control over LAN. It features drag-and-drop routing, real-time video previews, advanced video wall management up to 9×9, all accessible through an intuitive browser interface.

With HTTPS, SSH security, AES256 video encryption, and access management, it ensures your network is protected. Equipped with dual 1G network ports (PoE), dual RS-232 ports, and IR signal support, it integrates seamlessly into professional AV setups. API compatibility with Q-Sys, Crestron, and more adds powerful automation and control options. Darwin Control is Darwin HD Rx is fully TAA compliant and comes with a 5-year warranty.

Technical

Network Bandwidth
Control Ports





ESD Protection

100Mbps

2x 1G LAN [RJ45 connector] [VIDEO LAN support POE] 1x IR IN [3.5mm audio jack, 12V level]
1x IR OUT [3.5mm audio jack]
1x DIGITAL I/O [6-pin 3.81mm phoenix connector] 2x RS-232 [3-pin 3.81mm phoenix connector]
1x UPDATE [Micro USB, 5-pin female]

IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge)

Mechanical

Housing
Color
Dimensions
Weight
Power Supply


Power Consumption
Operating Temperature
Relative Humidity

Metal enclosure
Turtle Aqua
204mm [W] x 98.5mm [D] x 21.5mm [H]
508g
Input: AC100-240V 50/60Hz
Output: DC 12V/2.5A
PoE IEEE 802.3af
2W
32 – 104° F / -20 – 60° C
20% – 90% RH (no condensing)

1.
2.
3.
4.
5.
6.
7.
8.

DC 12V/1A power input port
Video LAN. 100M Video LAN port, with POE support.
Control LAN
RS-232 Serial port
4 Channel I/O outputs
I/O output level switch
12V IR signal input port
12V IR signal output port
