Overview

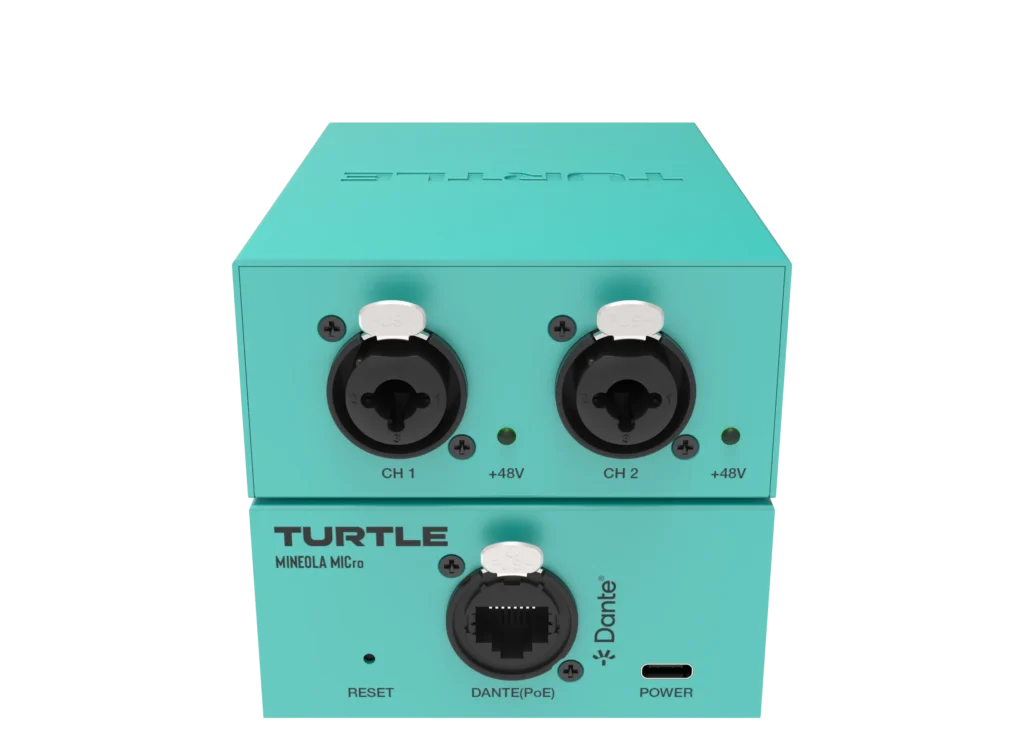

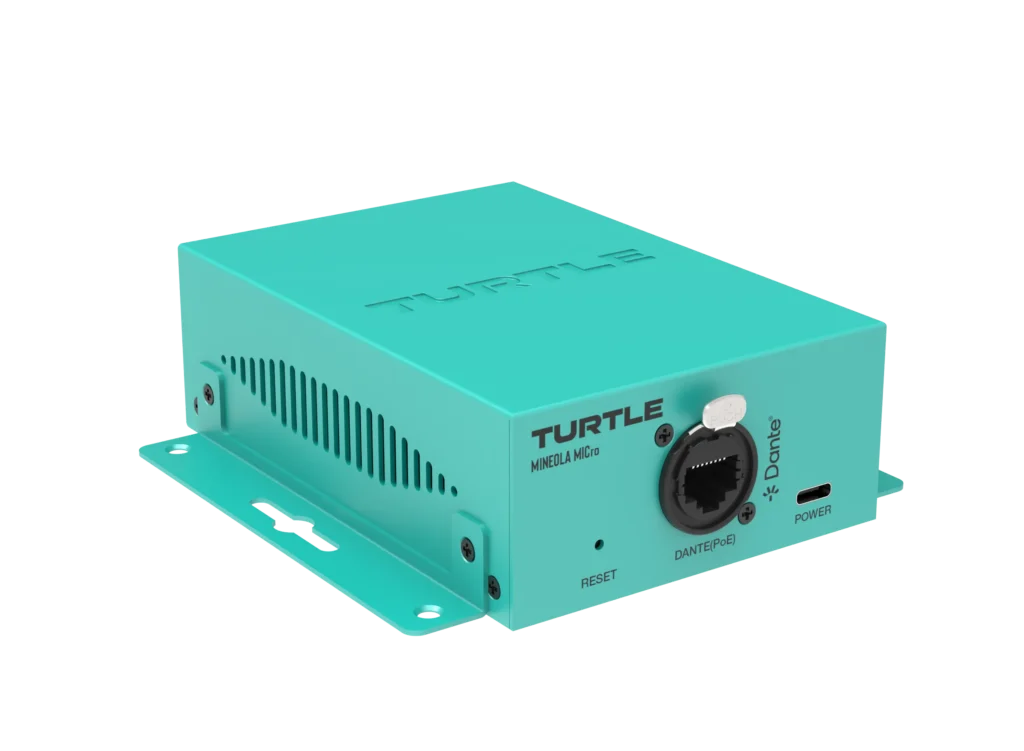

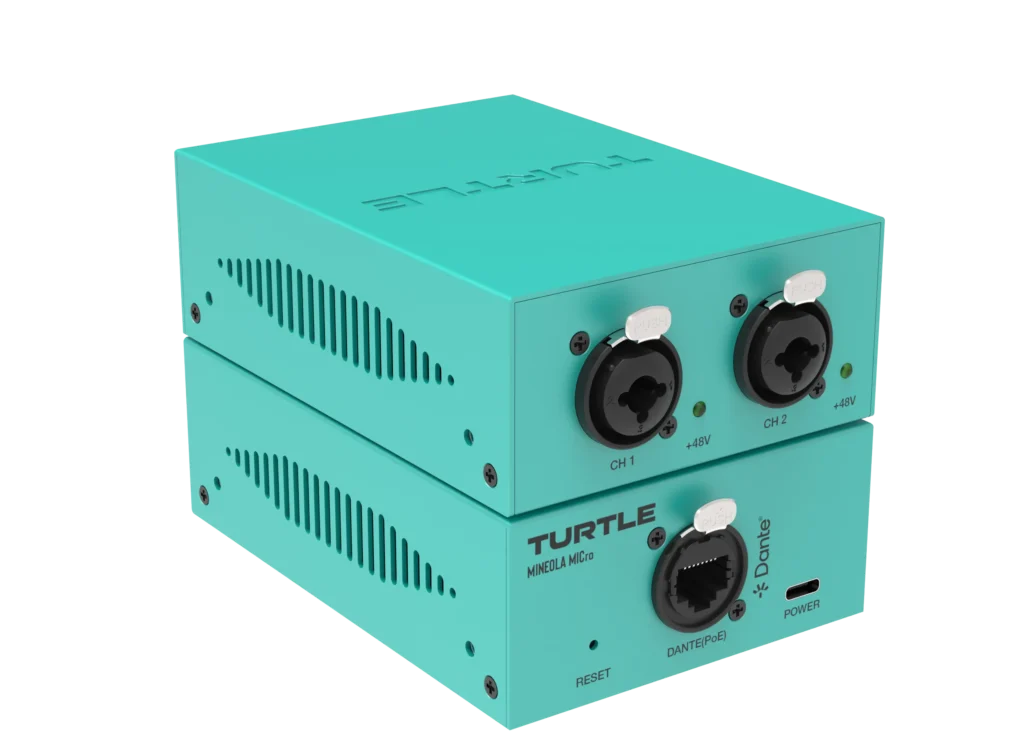

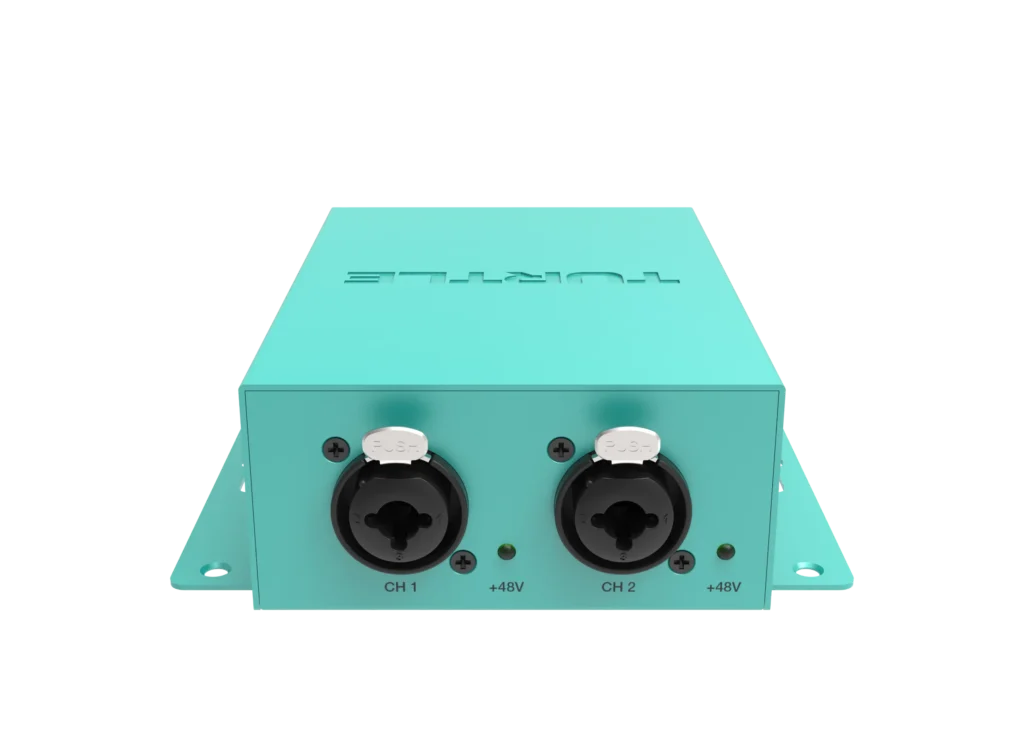

The Mineola MICro seamlessly connects microphones and analog audio sources to the Dante ecosystem in an ultra-compact form factor. Featuring a high-quality mic preamp, 48V phantom power, XLR and TRS combo connectivity, PoE and USB C power, integrated DSP and WebUI control, MICro is the mount anywhere Dante mic preamp you’ve been looking for.
Technical
Analog Input
Digital I/O
Control
Network Bandwidth
Audio Latency
Line-Up Level Selection
Input Sensitivity
Audio Processing
Sample Rate
Sample Rate Conversion (SRC)
Signal Latency
Power Consumption
ESD Protection
2 channels balanced/unbalanced analog audio with 48V Phantom power (XLR/TRS Combo)
2 channels Dante/AES67 digital audio
Dante Controller, WebUI
100M
Configurable Dante device latency (2, 3, 4, 5, and 10ms configurable using Dante Controller)
Adjustable Global 0dBFS: -35dBV, -18dBV, 0dBV, +4dBu, +14dBu, +24dBu
0dBV / +4dBu / +14dBu / +24dBu / -18dBV / -35dBV
Input Gain, 8-Band Parametric EQ, Delay, Comressor, Expander
48 kHz / 96 kHz
48 kHz
18 ms
5.44W
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connections
INPUT
NETWORK
2x LINE IN/MIC IN [XRL/TRS combo]
1x DANTE PRIMARY [EtherCON RJ45 LAN, PoE]
1x DANTE SECONDARY [EtherCON RJ45 LAN, PoE]
Mechanical
Housing
Color
Dimensions
Power Supply
Operating Temperature
Relative Humidity
Metal enclosure
Turtle Aqua
120mm x 85mm x 40mm
PoE: PoE (Class 4 IEEE 802.3af)
32 – 104° F / -20 – 60° C
20% – 90% RH (no condensing)
