Technical

Audio Channels	2CH Dante® and XLR
Output	2x XLR audio output with 5-level output/gain control
DSP Processing	Built-in DSP processing, including limiter and 8-band parametric EQ
Sample Rates	44.1kHz, 48kHz and 96kHz at 24-bit
Audio Latency	1, 2 or 5ms configurable latency using Dante® Controller
Audio Transport	AES67 RTP audio transport supported

Connections

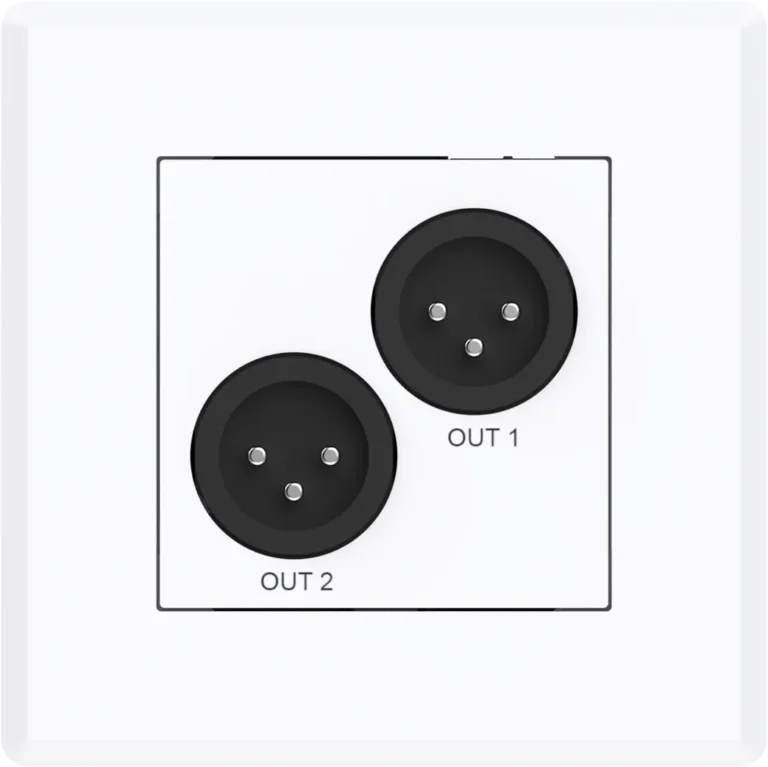

Audio Output	2x XLR audio outputs
Network Audio	Dante® network audio with AES67 RTP support
Power Input	PoE, Class 0 IEEE 802.3af, or local 12V DC power supply

Mechanical

Form Factor	Standard 1-Gang EU Decora design
Color	White/Black
Power Supply	PoE, Class 0 IEEE 802.3af, or local 12V DC power supply
